EVAPORATOR

id071100002100

Front

Purpose/Function

•  The front evaporator circulates low temperature, low pressure gaseous refrigerant inside the front evaporator.

Structure/Construction

•  The front evaporator consists of the tube which passes refrigerant and the heat radiation fins.

ac9wzn00001558

•  The cooling medium flow pattern shown in the figure has been adopted for the front evaporator.

ac9uun00002035

Operation

•  For the front evaporator operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)

Fail-safe

•  Not applicable

Rear

Purpose/Function

•  The rear evaporator circulates low temperature, low pressure gaseous refrigerant inside the rear evaporator.

Structure/Construction

•  The rear evaporator consists of the tube which passes refrigerant and the heat radiation fins.

ac9wzn00001559

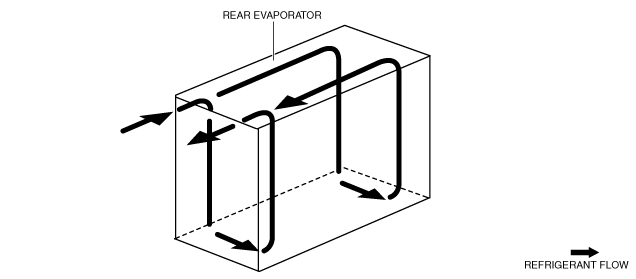

•  The cooling medium flow pattern shown in the figure has been adopted for the rear evaporator.

ac9uun00002037

Operation

•  For the rear evaporator operation, refer to the [REFRIGERANT SYSTEM]. (See REFRIGERANT SYSTEM.)

Fail-safe

•  Not applicable
