HEATER CORE

id071100002600

Front

Purpose/Function

•  Engine coolant is circulated inside the front heater core.

Structure/Construction

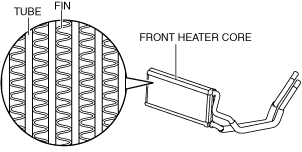

•  The front heater core consists of a tube which passes engine coolant, and the heat radiation fins.

ac9wzn00001560

Operation

•  For the front heater core operation, refer to the [HEATER SYSTEM]. (See HEATER SYSTEM.)

Fail-safe

•  Not applicable

Rear

Purpose/Function

•  Engine coolant is circulated inside the rear heater core.

Structure/Construction

•  The rear heater core consists of a tube which passes engine coolant, and the heat radiation fins.

ac9wzn00001561

Operation

•  For the rear heater core operation, refer to the [HEATER SYSTEM]. (See HEATER SYSTEM.)

Fail-safe

•  Not applicable
