SECOND-ROW SEAT
id091300009100
Purpose, Function
• The following have been adopted on the second-row seat to provide optimum driving posture or easy access to the third-row seats for passengers.
-
― Manual sliding function
― Manual recliner function
― Walk-in function
― One-touch walk-in function
― Manual second tilt function (passenger-side second-row seat only)
• A manual second tilt function has been adopted to the second-row seat on the right side to easily access the third-row seats with a child-restraint seat installed.
• The following have been adopted to mediate injury to a child during a collision or emergency braking.
-

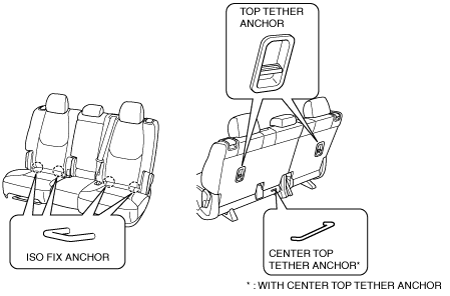

― ISO FIX anchors which enable easy/secure fixing of ISO FIX-applicable child-restraint seats
― Top tether anchors which enable fixing of child-restraint seats with tether strap
• A seat warmer system has been adopted on the second-row seat backs and second-row seat cushion. (With rear seat warmer system)
Structure/Construction
Operation
Manual sliding function
-
• The front and back positions of the second-row seat can be adjusted by operating the second-row seat slider lever.

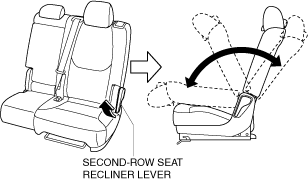

Manual recliner function
-
• The front and back positions of the second-row seat back can be adjusted by operating the second-row seat recliner lever.

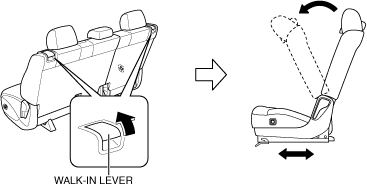

Walk-in function
-
• The front position of the second-row seat back and the front and back positions of the second-row seat can be adjusted by operating the walk-in lever.
One-touch walk-in function
-
• For details on the One-touch walk-in function, refer to the [POWER SEAT SYSTEM]. (See
POWER SEAT SYSTEM.)

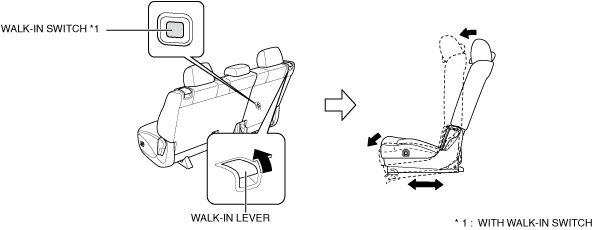

Manual second tilt function (passenger-side second-row seat only)
-
• The height of the front part of the seat cushion, the front position of the second-row seat back, and the front and back positions of the second-row seat can be adjusted by operating the walk-in lever/walk-in switch with a child-restraint seat installed.
Fail-safe
-
• Not applicable
