SEAT WARMER CONTROL UNIT
id091300101300
Purpose, Function
• The seat warmer control unit supplies power to the filaments built into the seat warmer unit.
• The seat warmer control unit detects the seat warmer unit temperature by the thermistor built into the seat warmer unit.

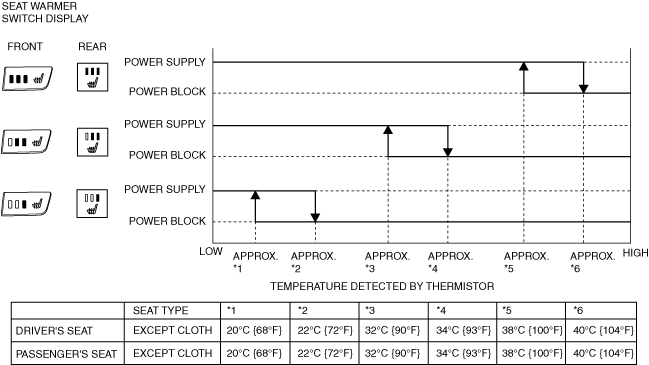

• The seat warmer control unit maintains a constant temperature around the seat warmer unit by continuing to supply power to the seat warmer unit according to the temperature in the following table detected by the thermistor.
Structure/Construction
Front
-

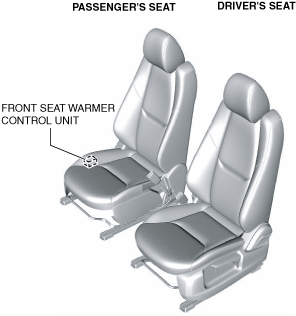

• The front seat warmer control unit is located on the bottom of the passenger's front seat.
Rear
-
• The rear seat warmer control unit is located on the bottom of the second-row seat.
Operation
• For the front seat warmer control unit / rear seat warmer control unit operation, refer to the [SEAT WARMER SYSTEM]. (See
SEAT WARMER SYSTEM.)
Fail-safe
• Not applicable
