KEYLESS ENTRY SYSTEM

id091400109400

Outline

Function

―  Locking/unlocking using a remote transmitter

―  Auto re-lock function: After unlocking, if any door or the liftgate/trunk lid is not opened and a period of time according to the personalization setting has elapsed, all doors are automatically locked.

―  Remote transmitter pause function: All the functions of the remote transmitter other than the remote transmitter used for the door lock are paused.

―  Alert function: If the system is operated incorrectly which results in a possible problem occurring, the system warns the user by using the KEY indicator light/warning light (without multi-information display), multi-information display (with multi-information display) and alarm in the instrument cluster.

Remote transmitter battery voltage low indication function

•  This function notifies the user that the battery voltage of the remote transmitter is low.

Structure/Construction

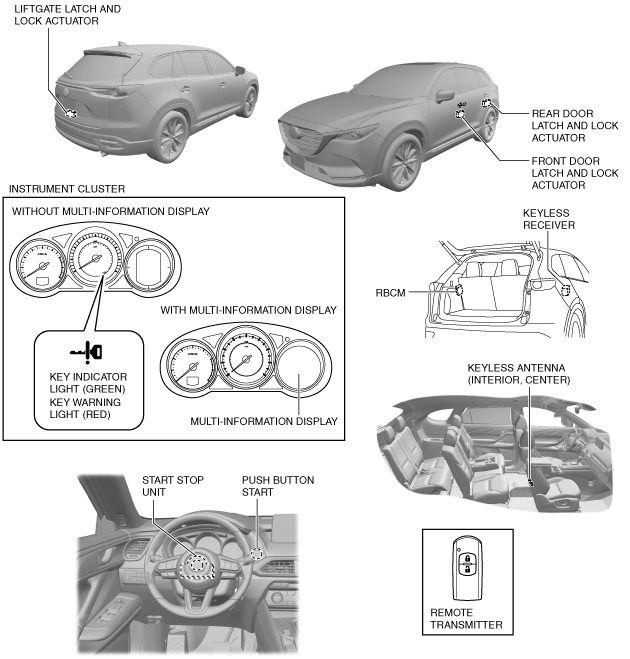

Structural view

ac9wzn00001205

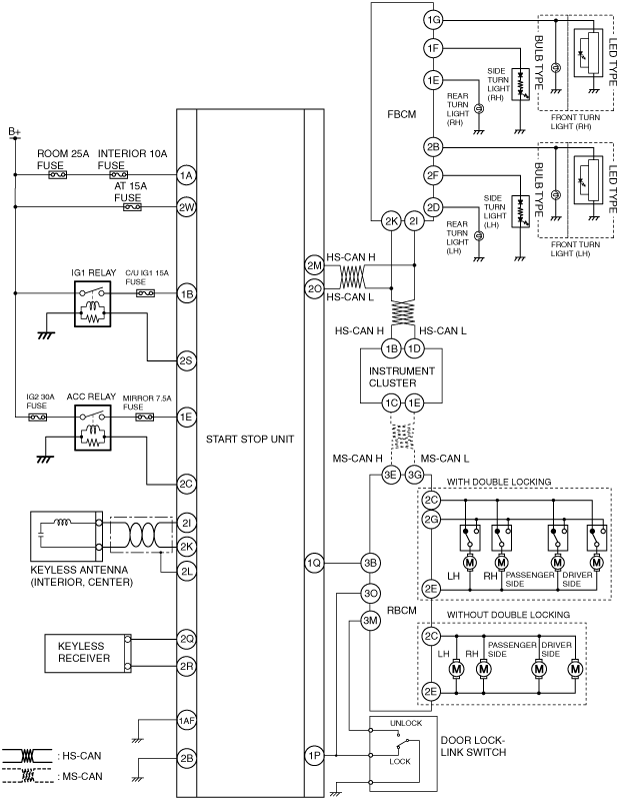

System wiring diagram

ac9wzn00001609

Operation

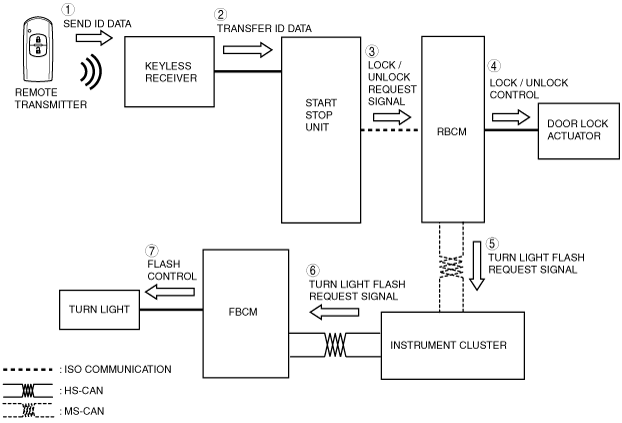

Lock/unlock operation using remote transmitter

Note

•  If the lock button of the remote transmitter is operated when all of the following conditions are met, all the doors and the liftgate are locked.

―  Ignition is switched off

―  All doors and liftgate are closed

•  If the unlock button of the remote transmitter is operated when all of the following conditions are met, all the doors and the liftgate are unlocked.

―  Ignition is switched off

1.  When the lock or unlock button of the remote transmitter is pressed, the remote transmitter sends ID data.

2.  The keyless receiver receives ID data and transmits the data to the start stop unit.

3.  The start stop unit verifies the ID data, and if the ID data matches, it sends a lock/unlock request signal to the rear body control module (RBCM).

4.  The rear body control module (RBCM) operates the front/rear door lock actuator motor to lock/unlock the front/rear doors.

5.  At the same time as the door lock/unlock operation, it sends a turn light flash request signal to the instrument cluster as a CAN signal.

6.  The instrument cluster sends the turn light flash request signal to the front body control module (FBCM) as a CAN signal.

7.  The front body control module (FBCM) controls the each turn lights to flash for the following number of times to signal that the lock/unlock operation is completed.

•  Lock: Each turn light flashes once

•  Unlock: Each turn light flashes twice

ac9wzn00001257

Auto re-lock function operation

•  After the start stop unit sends an unlock request signal to the rear body control module (RBCM), if any of the following operations is not performed in 30 s ^*1, it sends a lock request signal to the rear body control module (RBCM) to lock the front/rear doors.

―  A door or the liftgate is opened

―  A lock/unlock operation is performed using the driver's side front door key cylinder.

―  A lock/unlock operation is performed using the driver's side front door lock knob.

―  A lock/unlock operation is performed using the remote transmitter.

―  The ignition is switched to ACC or ON (engine off).

Remote transmitter pause function operation

When door locking is performed

•  If a door is locked by the remote transmitter operation when all the following conditions are met, all the functions of the remote transmitter other than the remote transmitter used for the door lock operation are paused.

―  All doors and liftgate are closed

―  Ignition is switched off

Remote transmitter pause cancel operation

•  The functions of the paused remote transmitter are restored when the following conditions are met:

―  A remote transmitter with which the engine can be started is brought inside the vehicle.

―  The lock/unlock button on the paused remote transmitter is pressed.

Alert function operation

•  Under the conditions in the table below, the start stop unit sends a security warning request signal via CAN communication to the instrument cluster.

•  When the instrument cluster receives the security warning request signal, it turns on/flashes^*3 the KEY warning light (red), or displays a message^*4 in the multi-information display.

Condition	Instrument cluster
	Keyless warning alarm	KEY warning light (red)*3	Multi-information display*4
Keyless entry system malfunction*1	―	On
Driver's door is opened with ignition in ACC	Pattern A*2×Continuous	―
Remote transmitter cannot be detected inside vehicle when all doors are closed with ignition not switched off	Pattern B*2	Flash

Remote transmitter battery voltage low indication function operation

•  When the ignition is switched from ON (engine off or on) to off under the condition indicated in the table, the start stop unit sends a battery voltage low indication request signal to the instrument cluster as a CAN signal.

•  When the instrument cluster receives the battery voltage low indication request signal, it flashes^*2 the KEY indicator (green), or displays a message^*3 in the multi-information display.

Condition	Instrument cluster
	KEY indicator light (green)*2	Multi-information display*3
Start stop unit receives code for low remote transmitter battery voltage*1	Flash (for approx. 30 s after ignition switched off)

•  A warning message in the center display is displayed when the KEY indicator light (green) is flashing or indicated in the multi-information display. For the display content, refer to [CENTER DISPLAY]. (See CENTER DISPLAY.)
