ON-BOARD DIAGNOSTIC [MAZDA ERA-GLONASS CONTROL MODULE]

id092200021860

Outline

―  A malfunction detection function, which detects overall malfunctions in the MAZDA ERA-GLONASS system-related parts.

―  A memory function, which stores detected DTCs.

―  A display function, which indicates malfunction locations and status via DTC output.

Malfunction detection function

DTC table

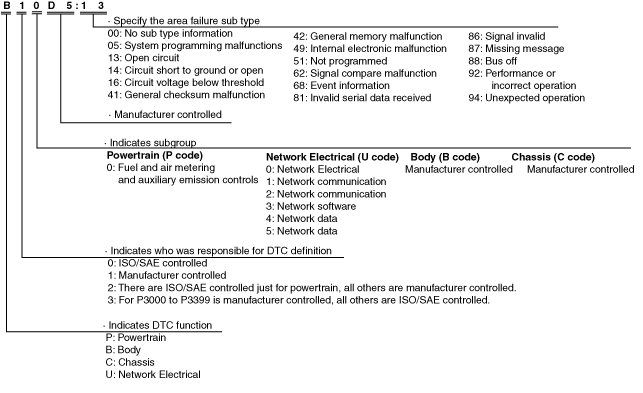

DTC 7-digit code definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.

am3zzn00005438

Status byte for DTC

•  The two digits (two digits after hyphen (-)) after the 7-digit DTC.

am3zzn00005439

•  A code which indicates the pending code, current/past malfunction status, or warning illumination status.

•  Can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).

•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.

Detection condition for the applicable DTC

DTC No.	Description	Detection condition
B104A:01	Mazda ERA-GLONASS switch malfunction	•  The Mazda ERA-GLONASS control module detected Mazda ERA-GLONASS switch stuck open or Mazda ERA-GLONASS switch open circuit for 10 min or more.
B104A:11	Mazda ERA-GLONASS switch circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the Mazda ERA-GLONASS switch circuit with the ignition switched ON (engine off or on).
B104A:15	Mazda ERA-GLONASS switch circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to power supply in the Mazda ERA-GLONASS switch circuit with the ignition switched ON (engine off or on).
B10A2:09	SAS control module collision judgement system malfunction	•  Mazda ERA-GLONASS control module receives the collision judgement system malfunction signal from the SAS control module with the ignition switched ON (engine off or on).
B10A2:52	SAS control module collision judgement system malfunction	•  Mazda ERA-GLONASS control module could not receive the SAS control module initial diagnosis completion signal from the SAS control module for 10 seconds since the ignition was switched ON (engine off or on).
B10A2:86	SAS control module collision judgement system malfunction	•  Mazda ERA-GLONASS control module received the invalid signal from the SAS control module for 10 seconds with the ignition switched ON (engine off or on).
B1142:12	Mazda ERA-GLONASS control module power supply circuit (IG1) malfunction	•  The Mazda ERA-GLONASS control module detected a short to power supply in the power supply circuit (IG1) with the ignition switched off or ACC.
B1142:14	Mazda ERA-GLONASS control module power supply circuit (IG1) malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to ground in the power supply circuit (IG1) with the ignition switched ON (engine off or on).
B116A:11	Microphone circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the microphone circuit for 3.5 seconds with the ignition switched ON (engine off or on).
B116A:12	Microphone circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to power supply in the microphone circuit for 1 second with the ignition switched ON (engine off or on).
B116A:13	Microphone circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit in the microphone circuit for 5 seconds with the ignition switched ON (engine off or on).
B116B:01	Mazda ERA-GLONASS speaker circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to ground or a short to power supply in the Mazda ERA-GLONASS speaker circuit for 3.5 seconds with the ignition switched ON (engine off or on).
B119F:01	TEL antenna malfunction	•  The vehicle is driven 50 km while the Mazda ERA-GLONASS control module cannot obtain position information from the TEL antenna.
B119F:11	TEL antenna circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the TEL antenna circuit for 10 seconds.
B119F:13	TEL antenna circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit in the TEL antenna circuit for 10 seconds.
B1207:09	SAS control module collision judgement system malfunction	•  The Mazda ERA-GLONASS control module receives a collision determination system error signal from the SAS control module via hard wire 10 times continuously with the ignition switched ON (engine off or on).
B1207:23	Event notification signal circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the event notification signal circuit for 2 seconds with the ignition switched ON (engine off or on).
B1207:24	Event notification signal circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to power supply in the event notification signal circuit for 2 seconds with the ignition switched ON (engine off or on).
B1207:86	Communication error with SAS control module	•  The Mazda ERA-GLONASS control module received invalid signal or could not receive any signal from SAS control module for 10 seconds with the ignition switched ON (engine off or on).
B121E:11	ACC output circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the ACC output circuit with the ignition switched ON (engine off or on).
B121E:12	ACC output circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to power supply in the ACC output circuit.
B12B7:11	Mazda ERA-GLONASS switch (green indicator) circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the Mazda ERA-GLONASS switch (green indicator) circuit for 2 seconds with the ignition switched ON (engine off or on).
B12B7:15	Mazda ERA-GLONASS switch (green indicator) circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to power supply in the Mazda ERA-GLONASS switch (green indicator) circuit for 2 seconds with the ignition switched ON (engine off or on).
B1477:14	Mazda ERA-GLONASS control module battery malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to ground in the Mazda ERA-GLONASS control module battery circuit.
B1477:16	Mazda ERA-GLONASS control module battery malfunction	•  The Mazda ERA-GLONASS control module detected the Mazda ERA-GLONASS control module battery voltage of less than 5.5 V.
B1A56:11	TEL antenna circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the TEL antenna circuit for 10 seconds.
B1A56:13	TEL antenna circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit in the TEL antenna circuit for 10 seconds.
B1C96:11	Mazda ERA-GLONASS switch (red indicator) circuit malfunction	•  The Mazda ERA-GLONASS control module detected a short to ground in the Mazda ERA-GLONASS switch (red indicator) circuit for 2 seconds with the ignition switched ON (engine off or on).
B1C96:15	Mazda ERA-GLONASS switch (red indicator) circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to power supply in the Mazda ERA-GLONASS switch (red indicator) circuit for 2 seconds with the ignition switched ON (engine off or on).
U0001:88	Unit communication error (HS-CAN)	•  The Mazda ERA-GLONASS control module cannot detect a CAN bus communication line (HS-CAN) signal with the ignition switched ON (engine off or on).
U0100:00	Communication error with PCM	•  The Mazda ERA-GLONASS control module cannot receive a CAN signal from PCM for 5 seconds with the ignition switched ON (engine off or on).
U0100:86	Error signal received from PCM	•  The Mazda ERA-GLONASS control module received error signal from PCM with the ignition switched ON (engine off or on).
U0121:00	Communication error with DSC HU/CM	•  The Mazda ERA-GLONASS control module cannot receive a CAN signal from DSC HU/CM for 60 seconds with the ignition switched ON (engine off or on). •  The Mazda ERA-GLONASS control module received error signal from DSC HU/CM for 60 seconds with the ignition switched ON (engine off or on).
U0151:00	communication error with SAS control module	•  The Mazda ERA-GLONASS control module cannot receive a CAN signal from SAS control module for 1 seconds with the ignition switched ON (engine off or on).
U0155:00	Communication error with instrument cluster	•  The Mazda ERA-GLONASS control module cannot receive a CAN signal from instrument cluster for 5 seconds with the ignition switched ON (engine off or on).
U2300:54	Configuration error (data not received)	•  Mazda ERA-GLONASS control module cannot receive configuration data from instrument cluster with the ignition switched to ON (engine off or on).
U2300:55	Configuration error (no configuration)	•  Mazda ERA-GLONASS control module detected any of the following conditions with the ignition switched to ON (engine off or on). ―  Mazda ERA-GLONASS control module cannot receive the same configuration data from the instrument cluster twice in a row ―  Mazda ERA-GLONASS control module cannot receive the same configuration data from the PCM twice in a row ―  Configuration data cannot be written to Mazda ERA-GLONASS control module memory.
U2300:56	Configuration error (Ineffective/non-interchangeable data read)	•  Mazda ERA-GLONASS control module received invalid configuration data from instrument cluster with the ignition switched to ON (engine off or on).
U3000:00	Mazda ERA-GLONASS control module internal malfunction	•  Mazda ERA-GLONASS control module detected internal malfunction with the ignition switched to ON (engine off or on).
U3002:29	Invalid data received from instrument cluster	•  Mazda ERA-GLONASS control module cannot receive the configuration data (VIN) from instrument cluster twice in a row
U3002:56	VIN data unmatched with instrument cluster	•  Mazda ERA-GLONASS control module detects that the vehicle identification number (VIN) sent from the instrument cluster does not match twice in a row.
U3003:14	Mazda ERA-GLONASS control module power supply circuit malfunction	•  The Mazda ERA-GLONASS control module detected an open circuit or a short to ground in the power supply circuit with the ignition switched ON (engine off or on).
U3003:16	Mazda ERA-GLONASS control module power supply voltage low input	•  The Mazda ERA-GLONASS control module power supply voltage of 7.5 V or less is detected with the ignition switched ON (engine off or on).
U3003:17	Mazda ERA-GLONASS control module power supply voltage high input	•  The Mazda ERA-GLONASS control module power supply voltage of 16 V or more is detected with the ignition switched ON (engine off or on).

Snapshot Data

Note

•  The MAZDA ERA-GLONASS control module stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the Mazda Modular Diagnostic System (M-MDS).

―  Vehicle information detected by MAZDA ERA-GLONASS control module

―  Vehicle information detected by instrument cluster and received by MAZDA ERA-GLONASS control module via CAN communication

Data Monitor Function

PID/data monitor table
