ON-BOARD DIAGNOSTIC [FORWARD SENSING CAMERA (FSC)]

id1502006955a3

Caution
•  Vehicle specifications differ depending on the vehicle identification number (VIN).
Type A VIN:
―  JM0 TC2WLA*# 100001—299999
―  JM0 TC4WLA*# 100001—299999
―  JMZ TB5WYA*# 100001—599999
―  JMZ TB6WYA*# 100001—599999
―  JMZ TBEWYA*# 100001—599999
―  JMZ TBFWYA*# 100001—599999
―  JM7 TC2WLA*# 100001—299999
―  JM7 TC4WLA*# 100001—299999
―  JM5 TCAWY**# 100001—299999
―  JM6 TC2WLA*# 100001—299999
―  JM6 TC4WLA*# 100001—299999
Type B VIN:
―  JM0 TC2WLA*# 300001—399999
―  JM0 TC4WLA*# 300001—399999
―  JMZ TB5WYA*# 600001—
―  JMZ TB6WYA*# 600001—
―  JMZ TBEWYA*# 600001—699999
―  JMZ TBFWYA*# 600001—699999
―  JM7 TC2WLA*# 300001—399999
―  JM7 TC4WLA*# 300001—399999
―  JM5 TCAWY**# 300001—399999
―  JM6 TC2WLA*# 300001—399999
―  JM6 TC4WLA*# 300001—399999
Type C VIN:
―  JM0 TC2WLA*# 400001—
―  JM0 TC4WLA*# 400001—
―  JM5 TCAWY**# 400001—
―  JM6 TC2WLA*# 400001—
―  JM6 TC4WLA*# 400001—
―  JM7 TC2WLA*# 400001—
―  JM7 TC4WLA*# 400001—
―  JMZ TBEWYA*# 700001—
―  JMZ TBFWYA*# 700001—

Outline

•  The on-board diagnostic function consists of the following functions:
―  A malfunction detection function, which detects overall malfunctions in the forward sensing camera (FSC)-related parts.
―  A memory function, which stores detected DTCs.
―  A display function, which indicates malfunction locations and status via DTC output.
―  A PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.
•  Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

•  Detects malfunctions in input/output signals.
•  If a malfunction occurs, the forward sensing camera (FSC) records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

DTC table (Forward Sensing Camera (FSC) Type A (VIN Serial No. 100001—))

×: Applicable
—: Not applicable

DTC No.

LDWS warning light

Description

Fail-safe

Drive cycle

Self test type*1

Memory function
B115E:54
Illuminated
Forward sensing camera (FSC) aiming not completed
×
—
C, D
×
B13A6:11
Illuminated
LDWS switch circuit malfunction
×
—
C, D
×
C1001:92
Illuminated
Poor functioning of forward sensing camera (FSC)
—
—
C, D
×
C1001:97
Illuminated
Forward sensing camera (FSC) poor visibility
×
—
C, D
×
U0001:88
Illuminated
Module communication error (HS-CAN)
×
—
C, D
×
U0100:00
Illuminated
Communication error with PCM
×
—
C, D
×
U0121:00
Illuminated
Communication error with DSC HU/CM
×
—
C, D
×
U0131:00
Illuminated
Communication error with electric power steering (EPS) control module
×
—
C, D
×
U0140:00
Illuminated
Communication error with front body control module (FBCM)
×
—
C, D
×
U0155:00
Illuminated
Communication error with instrument cluster
×
—
C, D
×
U0182:00*2
Illuminated
Communication error with adaptive LED headlights control module
×
—
C, D
×
U0214:00
Illuminated
Communication error with start stop unit
×
—
C, D
×
U0401:68
Illuminated
Error signal received from PCM
×
—
C, D
×
U0415:68
Illuminated
Error signal received from DSC HU/CM
×
—
C, D
×
U0420:68
Illuminated
Error signal received from electric power steering (EPS) control module
×
—
C, D
×
U0423:68
Illuminated
Error signal received from instrument cluster
×
—
C, D
×
U0483:68*2
Illuminated
Error signal received from adaptive LED headlights control module
×
—
C, D
×
U0515:68
Illuminated
Error signal received from start stop unit
×
—
C, D
×
U2005:86
Illuminated
Error signal received from PCM
×
—
C, D
×
U2100:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U2101:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U3000:04
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:09
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:42
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:49
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3003:16
Illuminated
Forward sensing camera (FSC) low power supply voltage input
×
—
C, D
×
U3003:17
Illuminated
Forward sensing camera (FSC) high power supply voltage input
×
—
C, D
×

*1  :C: CMDTC self test, D: ODDTC self test
*2  :With adaptive LED headlights system


DTC table (Forward Sensing Camera (FSC) Type B (VIN Serial No. 200001—))

×: Applicable
—: Not applicable

DTC No.

Smart brake support/smart city brake support (SBS/SCBS) warning light

HBC warning light (amber)/adaptive LED headlight warning light (amber)

Description

Fail-safe

Drive cycle

Self test type*1

Memory function
B115E:54
Illuminated
Illuminated
Forward sensing camera (FSC) aiming not completed
×
—
C, D
×
B115E:76
Illuminated
Illuminated
Forward sensing camera (FSC) axis deviation
×
3
C, D
×
B115E:78
Illuminated
Illuminated
Forward sensing camera (FSC) axis deviation (detected during mid-drive aiming)
×
—
C, D
×
B115E:9A
Illuminated
Illuminated
Forward sensing camera (FSC) mid-drive aiming time-out
×
—
C, D
×
B13A6:11
—
—
LDWS switch circuit malfunction
×
—
C, D
×
C0063:28
Illuminated
Illuminated
Yaw rate sensor poor accuracy
×
—
C, D
×
C1001:92
Illuminated
Illuminated
Forward sensing camera (FSC) poor field of view
×
—
C, D
×
C1001:97
Illuminated
Illuminated
Forward sensing camera (FSC) poor visibility
×
—
C, D
×
U0001:88
Illuminated
Illuminated
Module communication error (HS-CAN)
×
—
C, D
×
U0100:00
Illuminated
Illuminated
Communication error with PCM
×
—
C, D
×
U0104:00*2
Illuminated
—
Communication error with radar unit
×
—
C, D
×
U0121:00
Illuminated
Illuminated
Communication error with DSC HU/CM
×
—
C, D
×
U0131:00
Illuminated
—
Communication error with electric power steering (EPS) control module
×
—
C, D
×
U0140:00
Illuminated
Illuminated
Communication error with front body control module (FBCM)
×
—
C, D
×
U0151:00
Illuminated
Illuminated
Communication error with SAS control module
×
—
C, D
×
U0155:00
Illuminated
Illuminated
Communication error with instrument cluster
×
—
C, D
×
U0156:00
—
—
Communication error with connectivity master unit (CMU)
—
—
C, D
×
U0182:00*3
—
Illuminated
Communication error with adaptive LED headlights control module
×
—
C, D
×
U0214:00
Illuminated
Illuminated
Communication error with start stop unit
×
—
C, D
×
U0401:68
Illuminated
Illuminated
Error signal received from PCM
×
—
C, D
×
U0405:68*2
Illuminated
—
Error signal received from radar unit
×
—
C, D
×
U0415:68
Illuminated
Illuminated
Error signal received from DSC HU/CM
×
—
C, D
×
U0420:68
Illuminated
—
Error signal received from electric power steering (EPS) control module
×
—
C, D
×
U0423:68
Illuminated
Illuminated
Error signal received from instrument cluster
×
—
C, D
×
U0452:4A
Illuminated
Illuminated
SAS control module serial number mismatch
×
—
C, D
×
U0483:68*3
—
Illuminated
Error signal received from adaptive LED headlights control module
×
—
C, D
×
U0515:68
Illuminated
Illuminated
Error signal received from start stop unit
×
—
C, D
×
U2100:00
Illuminated
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U2300:51
Illuminated
Illuminated
Vehicle identification number (VIN) mismatch
×
—
C, D
×
U2300:54
Illuminated
Illuminated
Configuration data not received from instrument cluster
×
—
C, D
×
U2300:55
Illuminated
Illuminated
Instrument cluster configuration not implemented
×
—
C, D
×
U2300:56
Illuminated
Illuminated
Configuration data unmatched with instrument cluster
×
—
C, D
×
U2300:64
Illuminated
Illuminated
Instrument cluster configuration error
×
—
C, D
×
U3000:04
Illuminated
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:42
Illuminated
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:49
Illuminated
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:98
Illuminated
Illuminated
Forward sensing camera (FSC) stops functioning due to temporary high temperature
×
—
C, D
×
U3003:16
Illuminated
Illuminated
Forward sensing camera (FSC) low power supply voltage input
×
—
C, D
×
U3003:17
Illuminated
Illuminated
Forward sensing camera (FSC) high power supply voltage input
×
—
C, D
×

*1  :C: CMDTC self test, D: ODDTC self test
*2  :With mazda radar cruise control (MRCC) system
*3  :With adaptive LED headlights


Drive cycle

•  The drive cycle is the period of time from when the engine is started to the next time the engine is started.

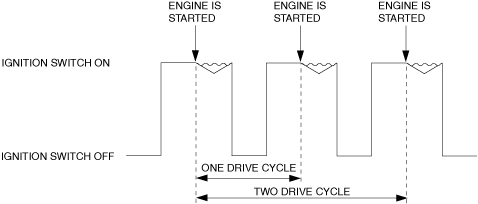

•  One drive cycle, as shown in the figure, indicates the period from the time engine is started to the next time the engine is started. If this period is repeated twice it then becomes two drive cycles.
ac9wzn00002407
•  To detect DTCs, a required number of drive cycles for pre-detection has been set. For the number of drive cycles required for detection, refer to the DTC table.


DTC 7-digit code definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.
ac5wzn00001569


Status byte for DTC

•  The two digits (two digits after hyphen (-)) after the 7-digit DTC.
ac5wzn00002011
•  A code which indicates the pending code, current/past malfunction status, or warning illumination status.
•  Can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).
•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.


Detection condition for the applicable DTC (Forward Sensing Camera (FSC) Type A (VIN Serial No. 100001—))

DTC No.

Description

Detection condition
B115E:54
Forward sensing camera (FSC) aiming not completed
•  Forward sensing camera (FSC) aiming not completed is detected.
B13A6:11
LDWS switch circuit malfunction
•  Forward sensing camera (FSC) detects that LDWS switch is held pressed for 10 s or more.
C1001:92
Poor functioning of forward sensing camera (FSC)
•  With the LDWS switch on, the forward sensing camera (FSC) detects that its field of view is poor for a certain period of time.
C1001:97
Forward sensing camera (FSC) poor visibility
•  With the LDWS switch on, the forward sensing camera (FSC) detects that its field of view is obstructed for a certain period of time.
U0001:88
Module communication error (HS-CAN)
•  Forward sensing camera (FSC) cannot receive the CAN bus communication signal (HS-CAN) for 1 s or more.
•  Forward sensing camera (FSC) detects the CAN bus communication line (HS-CAN) malfunction 10 times continuously.
U0100:00
Communication error with PCM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the PCM for 1 s or more.
U0121:00
Communication error with DSC HU/CM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the DSC HU/CM for 1 s or more.
U0131:00
Communication error with electric power steering (EPS) control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the electric power steering (EPS) control module for 1 s or more.
U0140:00
Communication error with front body control module (FBCM)
•  Forward sensing camera (FSC) cannot receive the CAN signal from the front body control module (FBCM) for 5 s or more.
U0155:00
Communication error with instrument cluster
•  Forward sensing camera (FSC) cannot receive the CAN signal from the instrument cluster for 5 s or more.
U0182:00*1
Communication error with adaptive LED headlights control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the adaptive LED headlights control module for 10 s or more.
U0214:00
Communication error with start stop unit
•  Forward sensing camera (FSC) cannot receive the CAN signal from the start stop unit for 1 s or more.
U0401:68
Error signal received from PCM
•  Forward sensing camera (FSC) receives the error signal from the PCM for 5 s or more.
U0415:68
Error signal received from DSC HU/CM
•  Forward sensing camera (FSC) receives the error signal from the DSC HU/CM for 5 s or more.
U0420:68
Error signal received from electric power steering (EPS) control module
•  Forward sensing camera (FSC) receives the error signal from the electric power steering (EPS) control module for 5 s or more.
U0423:68
Error signal received from instrument cluster
•  Forward sensing camera (FSC) receives the error signal from the instrument cluster for 5 s or more.
U0483:68*1
Error signal received from adaptive LED headlights control module
•  Forward sensing camera (FSC) receives the error signal from the adaptive LED headlights control module for 5 s or more.
U0515:68
Error signal received from start stop unit
•  Forward sensing camera (FSC) receives the error signal from the start stop unit for 5 s or more.
U2005:86
Error signal received from PCM
•  Forward sensing camera (FSC) receives the vehicle speed signal error from the PCM for 5 s or more.
U2100:00
Forward sensing camera (FSC) configuration error
•  Forward sensing camera (FSC) configuration not completed is detected.
U2101:00
Forward sensing camera (FSC) configuration error
•  Detects that forward sensing camera (FSC) has unsupported configuration data.
U3000:04
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects an error in the image-related circuit in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:09
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects an internal temperature sensor malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:42
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a NVRAM error in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:49
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3003:16
Forward sensing camera (FSC) low power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 8.0 ± 0.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
U3003:17
Forward sensing camera (FSC) high power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 16.0 ± 0.8 V or more is detected for 5 s or more with the ignition switched ON (engine off or on).

*1  :With adaptive LED headlights system


Detection condition for the applicable DTC (Forward Sensing Camera (FSC) Type B (VIN Serial No. 200001—))

DTC No.

Description

Detection condition
B115E:54
Forward sensing camera (FSC) aiming not completed
•  Forward sensing camera (FSC) aiming not completed is detected.
B115E:76
Forward sensing camera (FSC) axis deviation
•  The forward sensing camera (FSC) detects that it is installed with the axis deviated.
B115E:78
Forward sensing camera (FSC) axis deviation (detected during mid-drive aiming)
•  The forward sensing camera (FSC) detects that it is installed with the axis deviated during mid-drive aiming.
B115E:9A
Forward sensing camera (FSC) mid-drive aiming time-out
•  The forward sensing camera (FSC) mid-drive aiming is not completed even if the vehicle has been driven for a certain period of time or more.
B13A6:11
LDWS switch circuit malfunction
•  Forward sensing camera (FSC) detects that LDWS switch is held pressed for 10 s or more.
C0063:28
Yaw rate sensor poor accuracy
•  The forward sensing camera (FSC) detects that the yaw rate sensor accuracy is not within the acceptable range.
C1001:92
Forward sensing camera (FSC) poor field of view
•  Forward sensing camera (FSC) detects that its field of view is poor for a certain period of time.
•  Poor field of view of the forward sensing camera (FSC) occurs due to various external and environmental factors.
C1001:97
Forward sensing camera (FSC) poor visibility
•  Forward sensing camera (FSC) detects that its field of view is obstructed for a certain period of time.
U0001:88
Module communication error (HS-CAN)
•  Forward sensing camera (FSC) cannot receive the CAN bus communication signal (HS-CAN) for 5 s or more.
U0100:00
Communication error with PCM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the PCM for 5 s or more.
U0104:00*1
Communication error with radar unit
•  Forward sensing camera (FSC) cannot receive the CAN signal from the radar unit for 5 s or more.
U0121:00
Communication error with DSC HU/CM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the DSC HU/CM for 5 s or more.
U0131:00
Communication error with electric power steering (EPS) control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the electric power steering (EPS) control module for 5 s or more.
U0140:00
Communication error with front body control module (FBCM)
•  Forward sensing camera (FSC) cannot receive the CAN signal from the front body control module (FBCM) for 5 s or more.
U0151:00
Communication error with SAS control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the SAS control module for 5 s or more.
U0155:00
Communication error with instrument cluster
•  Forward sensing camera (FSC) cannot receive the CAN signal from the instrument cluster for 5 s or more.
U0156:00
Communication error with connectivity master unit (CMU)
•  Forward sensing camera (FSC) cannot receive the CAN signal from the connectivity master unit (CMU) for 5 s or more.
U0182:00*2
Communication error with adaptive LED headlights control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the adaptive LED headlights control module for 5 s or more.
U0214:00
Communication error with start stop unit
•  Forward sensing camera (FSC) cannot receive the CAN signal from the start stop unit for 5 s or more.
U0401:68
Error signal received from PCM
•  Forward sensing camera (FSC) receives the error signal from the PCM for 5 s or more.
U0405:68*1
Error signal received from radar unit
•  Forward sensing camera (FSC) receives the error signal from the radar unit for 5 s or more.
U0415:68
Error signal received from DSC HU/CM
•  Forward sensing camera (FSC) receives the error signal from the DSC HU/CM for 5 s or more.
U0420:68
Error signal received from electric power steering (EPS) control module
•  Forward sensing camera (FSC) receives the error signal from the electric power steering (EPS) control module for 5 s or more.
U0423:68
Error signal received from instrument cluster
•  Forward sensing camera (FSC) receives the error signal from the instrument cluster for 5 s or more.
U0452:4A
SAS control module serial number mismatch
•  The forward sensing camera (FSC) detects that the SAS control module serial number has changed.
U0483:68*2
Error signal received from adaptive LED headlights control module
•  Forward sensing camera (FSC) receives the error signal from the adaptive LED headlights control module for 5 s or more.
U0515:68
Error signal received from start stop unit
•  Forward sensing camera (FSC) receives the error signal from the start stop unit for 5 s or more.
U2100:00
Forward sensing camera (FSC) configuration error
•  Forward sensing camera (FSC) configuration not completed is detected.
U2300:51
Vehicle identification number (VIN) mismatch
•  The forward sensing camera (FSC) detects that the vehicle identification number (VIN) sent from the instrument cluster does not match.
U2300:54
Configuration data not received from instrument cluster
•  Forward sensing camera (FSC) cannot receive the configuration data from the instrument cluster with the ignition switched ON (engine off or on).
U2300:55
Instrument cluster configuration not implemented
•  Forward sensing camera (FSC) received a signal which indicates the instrument cluster configuration is not performed with the ignition switched ON (engine off or on).
U2300:56
Configuration data unmatched with instrument cluster
•  Configuration data of the forward sensing camera (FSC) and instrument cluster are not matched with the ignition switched ON (engine off or on).
U2300:64
Instrument cluster configuration error
•  Instrument cluster configuration error (signal error) detected with the ignition switched ON (engine off or on).
U3000:04
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects an error in the image-related circuit in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:42
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a NVRAM error in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:49
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:98
Forward sensing camera (FSC) stops functioning due to temporary high temperature
•  The forward sensing camera (FSC) detects that its temperature is high and temporarily stops functioning.
U3003:16
Forward sensing camera (FSC) low power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 8.0 ± 0.5 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
U3003:17
Forward sensing camera (FSC) high power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 16.0 ± 0.5 V or more is detected for 5 s or more with the ignition switched ON (engine off or on).

*1  :With mazda radar cruise control (MRCC) system
*2  :With adaptive LED headlights


Snap shot data

Note
•  The forward sensing camera (FSC) stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the Mazda Modular Diagnostic System (M-MDS).
―  Vehicle information detected by forward sensing camera (FSC)
―  Vehicle information detected by instrument cluster and received by forward sensing camera (FSC) via CAN communication
•  The data for all DTCs currently detected is stored.

Snapshot data table

—: Not applicable

Snapshot data item

Unit

Data contents

Data read/use method

Corresponding data monitor items
AAT
°C
°F
Ambient temperature
—
—
APP_STATUS
Accelerator Pedal Off/Under20%/Over20%/FAIL
Accelerator pedal position status
—
—
CFG_STATUS
Config Complete/Not Configured/Config Error
Instrument cluster configuration status
—
—
ECT_STATUS
Under 0 degrees C/0 - Under 80 degrees C/Over 80 degrees C/FAIL
Engine coolant temperature status
—
—
ECU_IN_TMP
°C
°F
ECU internal temperature
—
—
IG-ON_TIMER
hh:mm:ss*1
Elapsed time since ignition was switched ON (engine off or on)
Note
•  The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).
•  The forward sensing camera (FSC) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN communication from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the M-MDS.
—
OPE_MODE*3
Normal/CALIBRATION/EMERGENCY
Operation mode
—
—
PWR_MODE_KEY
Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting
•  Key Out: Ignition switched off
•  Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched off
•  Accessory (Position 1): Ignition is switched to ACC
•  Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON (engine off or on)
•  Ignition On (Position 2): Ignition switched ON (engine off)
•  Running (Position 2): Ignition switched ON (engine on)
•  Running - Starting: Cranking condition
•  The forward sensing camera (FSC) constantly receives the ignition switch status sent via CAN signal from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the ignition switch status when the DTC was detected, and it is displayed in the M-MDS.
—
RPM_STATUS
Engine Stop/Under1500rpm/Over1500rpm/FAIL
Engine speed status
•  The forward sensing camera (FSC) constantly receives the engine speed sent via CAN signal from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the engine speed when the DTC was detected, and it is displayed in the M-MDS.
TACHOMTR*1
SHIFT_STATUS
P/N/
D/
R/
FAIL
Selector lever position status
•  The forward sensing camera (FSC) constantly receives the selector lever position sent via CAN signal from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the selector lever position when the DTC was detected, and it is displayed in the M-MDS.
—
TOTAL_DIST
km
miles
Accumulated total traveled distance from completion of vehicle until forward sensing camera (FSC) detects DTC (Odometer value in instrument cluster)
The total traveled distance from which the forward sensing camera (FSC) detects DTCs to the present can be calculated by performing the following procedure.
1.  Verify the odometer value in the instrument cluster.
2.  Verify the snapshot data item TOTAL_DIST.
3.  Subtract 2 from 1.
—
TOTAL_TIME
hh:mm:ss*2
Accumulated total elapsed time since vehicle completion until forward sensing camera (FSC) detects a DTC
Note
•  When the ROOM fuse is removed, and the ignition is switched off, the time is not included in the elapsed time.
The elapsed time from which the forward sensing camera (FSC) detects DTCs to the present can be calculated by performing the following procedure.
1.  Verify the instrument cluster PID item TOTAL_TIME.
2.  Verify the snapshot data item TOTAL_TIME.
3.  Subtract 2 from 1.
TOTAL_TIME*1
VPWR
V
Forward sensing camera (FSC) power supply voltage
—
VPWR_IG1
VSPD*3
KPH
MPH
Vehicle speed
—
—
VSPD_STATUS
Stop/
0-10km/h/
Over10km/h/
FAIL
Vehicle speed status
•  The forward sensing camera (FSC) constantly receives the vehicle speed sent via CAN signal from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the vehicle speed when the DTC was detected, and it is displayed in the M-MDS.
—

*1  :Instrument cluster PID (See ON-BOARD DIAGNOSTIC [INSTRUMENT CLUSTER].)
*2  :The seconds may be indicated after the decimal point.
*3  :Type A VIN/Type B VIN

Data Monitor Function

•  With the PID/data monitor function, the input/output signal monitor items set in the forward sensing camera (FSC) can be selected and read out in real-time.
•  The items which can be selected are as follows.

—: Not applicable

PID

Unit/Operation

Data contents

Module control terminal

Forward sensing camera (FSC) type A (VIN serial No. 100001-)

Forward sensing camera (FSC) type B (VIN serial No. 200001-)
A_ANG_PITCH*2
° (deg)
Displays vanishing point correction angle (pitch) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
•  C
•  E
•  M
•  N
A_ANG_ROLL*2
° (deg)
Displays vanishing point correction angle (roll) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
•  C
•  E
•  M
•  N
A_ANG_YAW*2
° (deg)
Displays vanishing point correction angle (yaw) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
•  C
•  E
•  M
•  N
BRAKE_SW*2
Off/On
•  Off: Brake switch (No. 2 signal) is off. (Brake pedal is not depressed.)
•  On: Brake switch (No. 2 signal) is on. (Brake pedal is depressed.)
•  C
•  E
•  M
•  N
DSP_LANE_ST*2
Off/Dash_Lane/Solid_Lane
•  Off: Lane departure warning system (LDWS) is off.
•  Dash_Lane: Vehicle lane lines are not recognized.
•  Solid_Lane: Vehicle lane lines are recognized at a vehicle speed of 65 km/h {40 mph} or more.
•  C
•  E
•  M
•  N
DSP_WRN_ST*2
Off/LDWS_Left/LDWS_Right/LDWS_Fail/HBC_Fail/Camera_BLK/FOW_Warning/FOW_Fail/FSC_Fail/Camera_DRDT
•  Off: Forward sensing camera (FSC) does not detect malfunction.
•  LDWS_Left: Lane departure on vehicle left side is detected.
•  LDWS_Right: Lane departure on vehicle right side is detected.
•  LDWS_Fail: Malfunction related to lane departure warning system (LDWS) is detected.
•  HBC_Fail: —.
•  Camera_BLK: Dirt on camera is detected.
•  FOW_Warning: —
•  FOW_Fail: —
•  FSC_Fail: Forward sensing camera (FSC) malfunction is detected.
•  Camera_DRDT: Camera fogging is detected.
•  C
•  E
•  M
•  N
HBC_H/L_CS
Hi_Request/Low_Request/Invalid
•  Hi_Request: HI beam switch signal received
•  Low_Request: LO beam switch signal received
•  Invalid: Error in HI/LO beam switch request signal
•  C
•  E
•  M
•  N
IL_ST_HBC
Off/Green_On/Green_Flash/Amber_On/Amber_Flash
•  Off: HBC system indicator light (green) and HBC system warning indicator light (amber) turned off
•  Green_On: HBC system indicator light (green) is illuminated.
•  Green_Flash: HBC system indicator light (green) is flashing.
•  Amber_On: HBC system warning light (amber) is illuminated.
•  Amber_Flash: HBC system warning light (amber) is flashing.
•  C
•  E
•  M
•  N
IL_ST_LDWS
Off/Green_On/Green_Flash/Amber_On/Amber_Flash
•  Off: LDWS OFF indicator light (green) and LDWS OFF warning light (amber) turned off
•  Green_On: LDWS OFF indicator light (green) illuminated
•  Green_Flash: LDWS OFF indicator light (green) is flashing.
•  Amber_On: LDWS OFF warning light (amber) is illuminated.
•  Amber_Flash: LDWS OFF warning light (amber) is flashing.
•  C
•  E
•  M
•  N
INH_LAS*1
Off/On
•  Off: Lane-keep assist system control is not inhibited.
•  On: Lane-keep assist system control is inhibited.
•  C
•  E
—
INH_SCBS*1
Off/On
•  Off: Smart city brake support (SCBS) control is not inhibited.
•  On: Smart city brake support (SCBS) control is inhibited.
•  C
•  E
—
LDWS_BUZZER*2
Off/On
•  Off: Lane departure warning sound does not sound.
•  On: Lane departure warning sound sounds.
•  C
•  E
•  M
•  N
LDWS_SW
Off/On
•  Off: LDWS OFF switch is on.
•  On: LDWS OFF switch is off.
•  C
•  E
•  M
•  N
RS_SOUND_CS*2
Off/Left/Right
•  Off: Rumble strip sound is not heard.
•  Left: Left side rumble strip sound heard.
•  Right: Right side rumble strip sound heard.
•  C
•  E
•  M
•  N
VPWR_IG1
V
Displays forward sensing camera (FSC) power supply voltage
I
B
VSPD
KPH, MPH
Displays vehicle speed
•  C
•  E
•  M
•  N

*1  :Forward sensing camera (FSC) type A (VIN serial No. 100001—)
*2  :Type A VIN/Type B VIN
