DTC P0453 [MZI-3.7 (PCM CONNECTOR (2 TYPES))]
id0102e3873800
DTC P0453 |
Fuel tank pressure sensor high input |
---|---|
DETECTION CONDITION
|
• The PCM monitors the evaporative emission (EVAP) control system fuel tank pressure sensor input signal to the PCM. The test fails when the signal average jumps above a minimum allowable calibrated parameter.
|
POSSIBLE CAUSE
|
• Fuel tank pressure sensor malfunction
• Connector or terminal malfunction

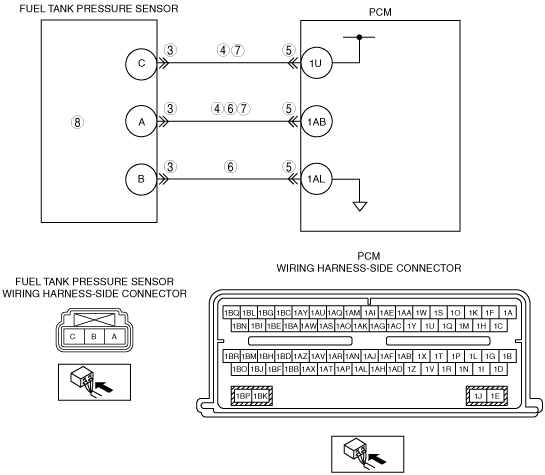

• Open circuit between fuel tank pressure sensor terminal A and PCM terminal 1AB
• Open circuit between fuel tank pressure sensor terminal B and PCM terminal 1AL
• Short to the constant voltage supply circuit between fuel tank pressure sensor terminal A and PCM terminal 1AB
• Short to power supply between fuel tank pressure sensor terminal C and PCM terminal 1U
• Fuel tank pressure sensor power circuit and signal circuit are shorted each other
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT FUEL TANK PRESSURE SENSOR CONNECTION FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect fuel tank pressure sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
No
|
Go to the next step.
|
||
4
|
VERIFY FUEL TANK PRESSURE SENSOR SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between the following terminals:
• Are there voltage B+?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
No
|
Go to the next step.
|
||
5
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the fuel tank pressure sensor and PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
No
|
Go to the next step.
|
||
6
|
VERIFY FUEL TANK PRESSURE SENSOR CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between the following circuits:
• Are there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
7
|
INSPECT FUEL TANK PRESSURE SENSOR SIGNAL CIRCUIT AND POWER CIRCUIT FOR SHORT EACH OTHER
• Turn the ignition switch off.
• Disconnect the fuel tank pressure sensor and PCM connector.
• Measure resistance between PCM connector terminal 1U (harness-side) and CM connector terminal 1AB (harness-side).
• Is the resistance more than 10 kilohms?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
8
|
INSPECT FUEL TANK PRESSURE SENSOR
• Inspect the fuel tank pressure sensor.
• Is the fuel tank pressure sensor normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the evaporative hose component, then go to the next step.
|
||
9
|
VERIFY TROUBLESHOOTING OF DTC P0453 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Turn ignition switch to the ON position (Engine off).
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine and warm it up completely.
• Is same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “After Repair Procedure”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
No
|
Troubleshooting completed.
|
