DTC P0572:00 [MZI-3.7 (PCM CONNECTOR (3 TYPES))]
id0102e4314500
|
DTC P0572:00 |
Brake switch A circuit low |
|---|---|
|
DETECTION CONDITION
|
• This DTC indicates the brake switch is stuck.
|
|
POSSIBLE CAUSE
|
• Brake switch No.1 mis installation
• Connector or terminal malfunction
• Brake switch No.1 circuit malfunction
• Brake switch No.1 malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT THE OPERATION OF THE BLAKE LIGHT
• Turn the ignition switch to the ON position (engine off).
• Depress and release the brake pedal and check the blake light operation.
• Do the blake light operate correctly?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
|
4
|
INSPECT THE CRUISE CONTROL OPERATION
• Check for cruise control operation.
• Does the cruise control operate correctly?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
|
5
|
INSPECT BRAKE SWITCH AND PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the brake switch and the PCM connector.
• Inspect for poor connection (such as damaged/ pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
|
No
|
Go to the next step.
|
||
|
6
|

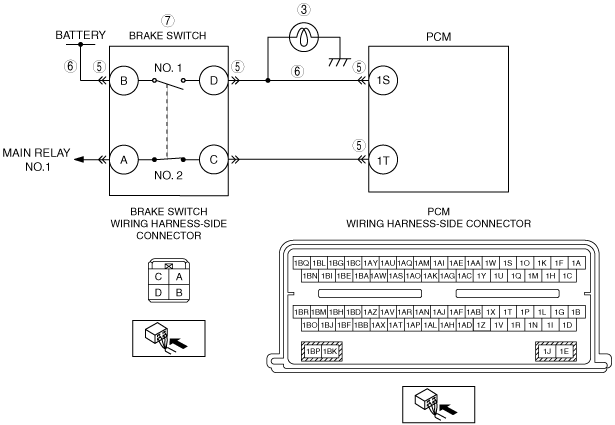

INSPECT BRAKE SWITCH NO.1 CIRCUIT MALFUNCTION
• Brake switch and PCM connectors are disconnected.
• Turn the ignition switch to the ON position (engine off).
• Measure the voltage between PCM terminal 1S (wiring harness-side) and body ground.
• Verify the following values when the brake pedal to the floor and releasing.
• Is the voltage normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 9.
|
||
|
7
|
INSPECT BRAKE SWITCH
• Inspect the brake switch.
(See BRAKE SWITCH INSPECTION.)
• Is there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 9.
|
|
No
|
Go to the next step.
|
||
|
8
|
INSPECT FOR CORRECT PCM OPERATION
• Disconnect all the PCM connectors.
• Visually inspect for:
• Connect all the PCM connectors and verify that they seat correctly.
• Retrieve DTCs using the M-MDS.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
The system is correctly. Go to the next step.
|
||
|
9
|
VERIFY TROUBLESHOOTING OF DTC P0572:00 HAS BEEN COMPLETED
• Verify that all disconnected connectors reconnected.
• Clear the DTC from the PCM memory using the M-MDS.
• Depress and release the brake pedal.
• Retrieve DTCs using the M-MDS.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
||
