DTC P0603:00 [MZI-3.7 (PCM CONNECTOR (3 TYPES))]
id0102e4314700
|
DTC P0603:00 |
PCM keep alive memory (KAM) error |
|---|---|
|
DETECTION CONDITION
|
• Indicates the PCM has experienced an internal memory concern. However, there are external items that can cause this DTC.
|
|
POSSIBLE CAUSE
|
• Battery terminal corrosion
• Loose battery connection
• Connector or terminal malfunction
• Open circuit between battery positive terminal and PCM terminal 1V
• Reprogramming
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT BATTERY TERMINALS FOR POOR CONNECTION
• Turn the ignition switch off.
• Inspect for poor connection and corrosion.
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT MONITOR CIRCUIT FOR OPEN CIRCUIT
• PCM connector is disconnected.
• Turn the ignition switch off.
• Disconnect the battery cables.

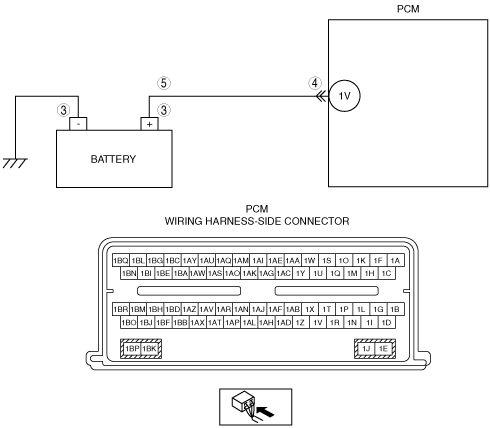

• Inspect the continuity between battery positive terminal (wiring harness-side) and PCM terminal 1V (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, then go to Step 7.
|
||
|
6
|
INSPECT FOR CORRECT PCM OPERATION
• Disconnect all the PCM connectors.
• Visually inspect for:
• Connect all the PCM connectors and verify that they seat correctly.
• Retrieve DTCs using the M-MDS.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
The system is correctly. Go to the next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING OF DTC P0603:00 HAS BEEN COMPLETED
• Verify that all disconnected connectors are reconnected.
• Turn the ignition switch to the ON position (Engine off).
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the KOEO or KOER self-test.
• Retrieve DTCs using the M-MDS.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
||
