DTC P2101:00 [MZI-3.7 (PCM CONNECTOR (3 TYPES))]
id0102e4707700
|
DTC P2101:00 |
Throttle actuator circuit range/performance |
|---|---|
|
DETECTION CONDITION
|
• A PCM malfunction flag is set indicating the motor circuit is open, and may require cycling the key.
|
|
POSSIBLE CAUSE
|
• Throttle body connector or terminal malfunction
• PCM connector or terminal malfunction
• Throttle actuator circuit are cross-wired
• PCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
VERIFY RELATED PENDING CODE OR STORED DTCs FOR ALL OF VEHICLE MODULE
• Turn the ignition switch off then to the ON position (Engine off).
• Verify related pending code or stored DTCs.
• Is other DTCs present?
|
Yes
|
Go to the appropriate DTC troubleshooting.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT THROTTLE BODY AND PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the throttle body and PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
5
|

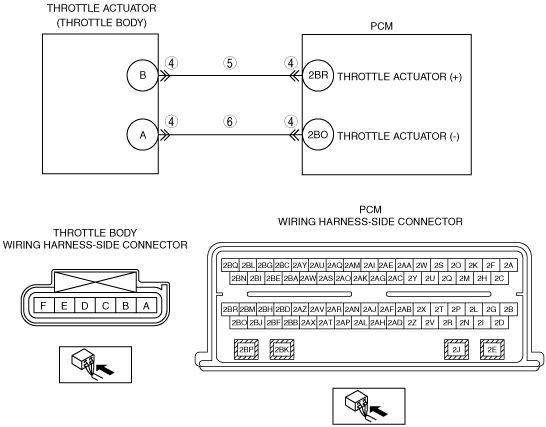

INSPECT FOR PROPER TACM+ WIRING IN WIRING HARNESS CONNECTOR
• Throttle body and PCM connectors are disconnected.
• Measure the resistance between throttle body terminal B and PCM terminal 2BR.
• Is the resistance less than 5 ohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair TACM+ circuit for an open circuit, then go to Step 7.
|
||
|
6
|
INSPECT FOR PROPER TACM- WIRING IN HARNESS CONNECTOR
• Throttle body and PCM connectors are disconnected.
• Measure the resistance between throttle body terminal A and PCM terminal 2BO.
• Is the resistance less than 5 ohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair TACM- circuit for an open circuit, then go to the next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING OF DTC P2101:00 HAS BEEN COMPLETED
• Verify that all disconnected connectors reconnected.
• Start the engine.
• Clear DTC from PCM memory using M-MDS.
• Perform the KOEO or KOER self-test.
• Is same DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
||
