VALVE CLEARANCE INSPECTION/ADJUSTMENT [MZI-3.7]

id0110c5800200

Valve Clearance Inspection

1.  Disconnect the negative battery cable.

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7].)

3.  Remove the ventilation hose.

4.  Remove the resonance chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

5.  Remove the dynamic chamber and throttle body as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

6.  Disconnect the wiring harness.

7.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZI-3.7].)

8.  Remove the dipstick.

9.  Remove the engine hanger installation bolt, and power steering oil pump hose out of the way (R.H.D.). (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [R.H.D.].)

10.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZI-3.7].)

11.  Remove the front wheel and tire (RH). (See GENERAL PROCEDURES (SUSPENSION).)

12.  Remove the splash shield (RH).

13.  Measure the valve clearance.

(1)  Rotate the crankshaft clockwise and verify that the timing mark of the intake side camshaft sprocket is in the position shown in the figure. In this position, the No.1 cylinder is at the TDC of the compression stroke.

ac9wzw00002245

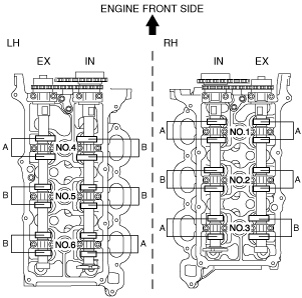

(2)  Measure the valve clearance of location A shown in the figure.

•  If it is not within the specification, replace the tappet and adjust the valve clearance to the median value of the standard.

ac9wzw00002246

Standard valve clearance [Engine cold]

IN: 0.150—0.250 mm {0.00591—0.00984 in}

EX: 0.300—0.400 mm {0.0119—0.0157 in}

Note

•  Make sure to note down the measured values for choosing the suitable replacement tappets.

(3)  Mark the crank pulley and engine front cover as shown in the figure.

ac9wzw00002247

(4)  Rotate the crankshaft clockwise 360 ° so that the No.5 cylinder is at TDC of the compression stroke.

(5)  Measure the valve clearance of location B shown in the figure.

•  If it is not within the specification, replace the tappet and adjust the valve clearance to the median value of the standard.

Standard valve clearance [Engine cold]

IN: 0.150—0.250 mm {0.00591—0.00984 in}

EX: 0.300—0.400 mm {0.0119—0.0157 in}

Note

•  Make sure to note down the measured values for choosing the suitable replacement tappets.

14.  Install in the reverse order of removal.

Valve Clearance Adjustment

1.  Follow the cylinder head gasket replacement procedure and remove the camshafts and camshaft sprocket as a single unit. (See CYLINDER HEAD GASKET REPLACEMENT [MZI-3.7].)

2.  Remove the tappet.

3.  Install an appropriate tappet based on the results of the valve clearance inspection.

Selected tappet = Removed tappet thickness + Measured valve clearance - Standard valve clearance

4.  Install in the reverse order of removal.
