REAR LOWER ARM REMOVAL/INSTALLATION

id021400800900

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Inspect for rear wheel alignment, and adjust it as necessary. (See REAR WHEEL ALIGNMENT [2WD].) (See REAR WHEEL ALIGNMENT [4WD].)

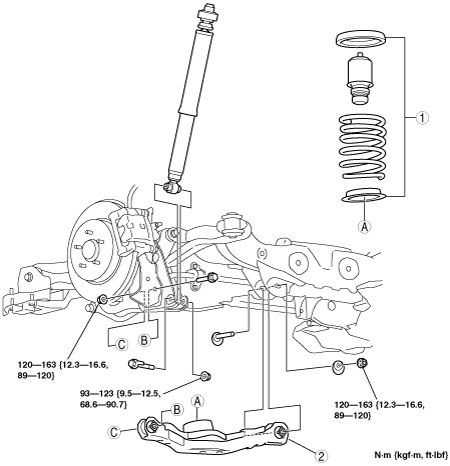

ac9uuw00000926

1	Rear coil spring component (See REAR COIL SPRING REMOVAL/INSTALLATION.)
2	Rear lower arm
