HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

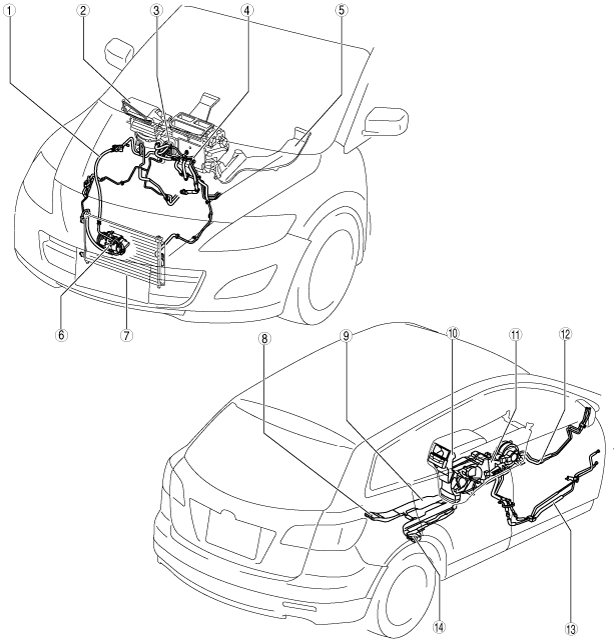

L.H.D.

ac9wzw00000918

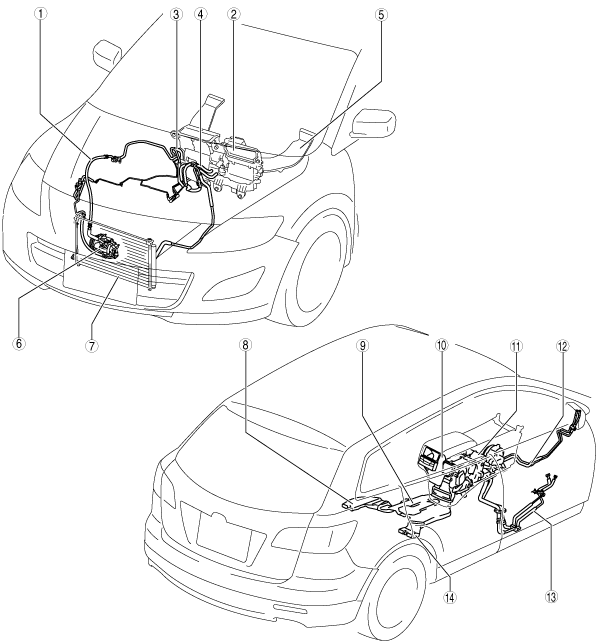

R.H.D.

ac9wzw00000917

1	Refrigerant line (front) (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
2	Front A/C unit (See FRONT A/C UNIT REMOVAL/INSTALLATION.) (See FRONT A/C UNIT DISASSEMBLY/ASSEMBLY.) (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.) (See FRONT EVAPORATOR INSPECTION.) (See FRONT HEATER CORE INSPECTION.)
3	Front expansion valve (See FRONT EXPANSION VALVE REMOVAL/INSTALLATION.)
4	Heater pipe and heater hose (front) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION.)
5	Rear heat duct No.1 (See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
6	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
7	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
8	Rear heat duct No.3 (See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
9	Rear heat duct No.2 (See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
10	Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)
11	Rear A/C unit (See REAR A/C UNIT REMOVAL/INSTALLATION.) (See REAR A/C UNIT DISASSEMBLY/ASSEMBLY.) (See REAR EVAPORATOR INSPECTION.) (See REAR HEATER CORE INSPECTION.)
12	Heater pipe and heater hose (rear) (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION.)
13	Refrigerant line (rear) (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
14	Rear heat duct No.4 (See REAR HEAT DUCT COMPONENT REMOVAL/INSTALLATION.)
