DIAGNOSTIC CHECK [CAR-NAVIGATION SYSTEM]
id0902f7412300

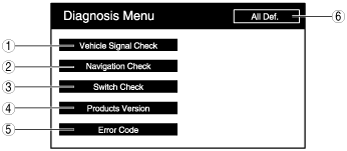

Inspection item list
am6zzw00002765
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Perform the vehicle signal check.
|
|
|
2
|
Navigation Check
|
Go to the Navigation Check Menu. (See NAVIGATION CHECK [CAR-NAVIGATION SYSTEM].)
|
|
3
|
Perform the switch inspection.
|
|
|
4
|
Verify the products version.
|
|
|
5
|
Error Code
|
|
|
6
|
All Def.
|
|
Vehicle Signal Check
1. Turn ignition switch to ACC or ON position.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Vehicle Signal Check”.
4. Verify the condition of the vehicle signal input to the display.

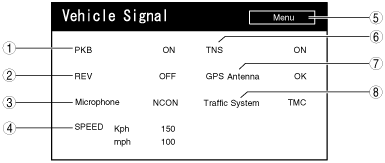

am6zzw00002404
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
PKB
|
Display the PKB signal condition.
|
|
2
|
REV
|
Display the REV signal condition.
|
|
3
|
Microphone
|
Verify the microphone condition.
|
|
4
|
SPEED
|
Display the vehicle speed.
|
|
5
|
Menu
|
Return to the Diagnosis Menu.
|
|
6
|
TNS
|
Display the TNS signal condition.
|
|
7
|
GPS Antenna
|
Display the GPS Antenna condition.
|
|
8
|
Traffic System
|
Display the Traffic System condition.
|
5. To stop the on-board diagnostic mode, turn the ignition switch to the LOCK position.
Switch Check
1. Turn ignition switch to ACC or ON position.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Switch Check”.
4. Operate the panel switches and verify that they operate correctly.

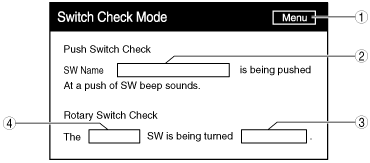

am6zzw00002783
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Menu
|
Return to the Diagnosis Menu.
|
|
2
|
Name of press-type switch
|
The name of the operated press-type switch is displayed.
|
|
3
|
Turn direction of switch
|
The operation condition (Left/Right) is displayed.
|
|
4
|
Name of dial-type switch
|
The name of the operated dial-type switch is displayed.
|
5. To stop the on-board diagnostic mode, turn the ignition switch to the LOCK position.
Products Version
1. Turn ignition switch to ACC or ON position.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].)
3. Select “Products Version”.
4. Verify each version.

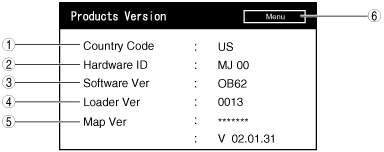

ac9wzw00001318
|
|
No. |
Name |
Content/function |
|---|---|---|
|
1
|
Country Code
|
Display the country code.
|
|
2
|
Hardware ID
|
Display the hardware ID.
|
|
3
|
Software Ver
|
Display the software version.
|
|
4
|
Leader Ver
|
Display the leader version.
|
|
5
|
Map Ver
|
Display the map version.
|
|
6
|
Menu
|
Return to the Diagnosis Menu.
|
5. To stop the on-board diagnostic mode, turn the ignition switch to the LOCK position.
