AUTO-DIMMING MIRROR INSPECTION

id091200004800

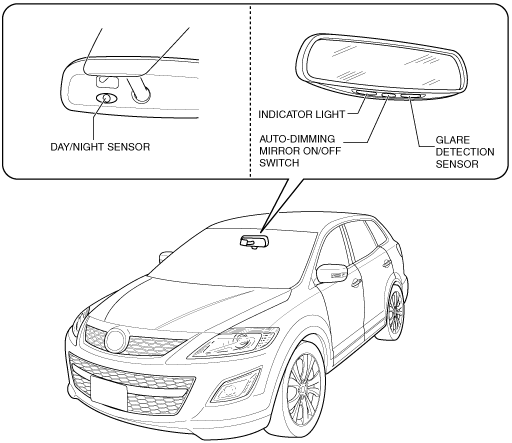

Operational Inspection

1.  Switch the ignition ON.

2.  Move the vehicle to a place with a showroom level of brightness.

3.  Verify that the indicator light is illuminated.

ac9wzw00003026

4.  Verify that the indicator light switches when the auto-dimming mirror on/off switch is pressed.

5.  While the indicator light is illuminated, verify that the mirror surface brightens.

6.  Cover the day/night sensor with a hand and verify that the mirror surface darkens when light is shone on the glare detection sensor.

7.  Remove your hand covering the day/night sensor and verify that the mirror surface brightens.

•  If the auto-dimming mirror does not operate, inspect the terminal voltage. (See Terminal Voltage Table (Reference).)

Terminal Voltage Table (Reference)

1.  Measure the voltage at each terminal.

•   If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under ”Inspection item (s)” and related wiring harnesses.

―  If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the auto-dimming mirror. (See AUTO-DIMMING MIRROR REMOVAL.) (See AUTO-DIMMING MIRROR INSTALLATION.)

ac9wzw00001682

Terminal	Signal name	Connected to	Measured condition	Voltage (V)	Inspection item(s)
A	Power supply	METER 10 A fuse	Switch the ignition ON.	B+	•  METER 10 A fuse •  Related wiring harnesses
B	R position signal	TR switch	R range	B+	•  TR switch •  Related wiring harnesses
			Other than R range	1.0 or less
D	GND	Body ground	Under any condition	1.0 or less	•  GND •  Related wiring harnesses
