SIDE TURN LIGHT INSPECTION

id091800811600

Side Turn Light

1.  Disconnect the negative battery cable.

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Remove the outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL.) (See OUTER MIRROR GARNISH INSTALLATION.)

4.  Remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

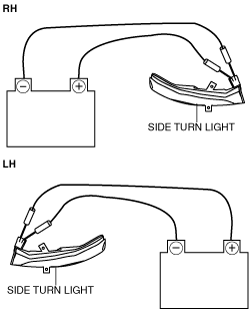

5.  Connect the battery voltage as shown in the figure.

ac9wzw00001476

•  If the side turn light does illuminate, replace it.

•  If the side turn light illuminate, inspect the short-code.

Short-code

1.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

4.  Verify that the continuity between side turn light terminals is as indicated in the table.

ac9wzw00001478

5.  If not as indicated in the table, replace the power outer mirror.

ac9wzw00001479
