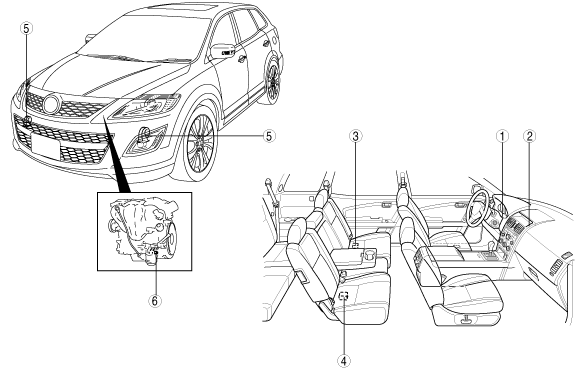

INSTRUMENTATION/DRIVER INFO. LOCATION INDEX

id092200801000

ac9wzw00001241

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.) (See INSTRUMENT CLUSTER CONFIGURATION.) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY.) (See INSTRUMENT CLUSTER INSPECTION.) (See INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE.)
2	Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION.) (See INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE.)
3	Fuel gauge sender unit (2WD) / Fuel gauge sender unit (main) (4WD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION.)
4	Fuel gauge sender unit (sub) (4WD) (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [4WD].) (See FUEL GAUGE SENDER UNIT INSPECTION.)
5	Horn (See HORN REMOVAL/INSTALLATION.)
6	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION.)
