DTC P0443 [MZI-3.7]
id0102d2807600
DTC P0443 |
Purge solenoid valve circuit |
---|---|
DETECTION CONDITION
|
• The PCM monitors the state of the purge solenoid valve circuit output driver. The test fails when the signal moves outside the minimum or maximum limit for the commanded state.
|
POSSIBLE CAUSE
|
• Purge solenoid valve malfunction
• Connector or terminal malfunction

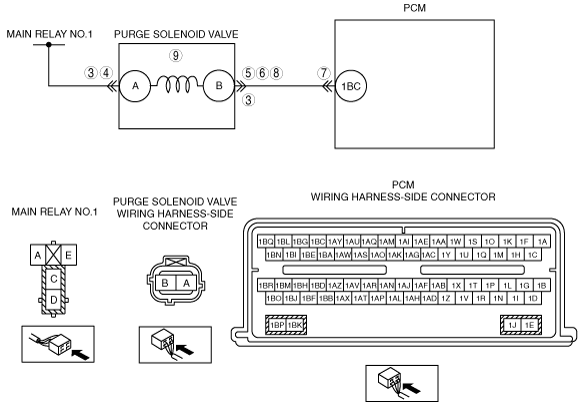

• Short to ground between purge solenoid valve terminal B and PCM terminal 1BC
• Open circuit between main relay No.1 terminal D and purge solenoid valve terminal A
• Short to power supply between purge solenoid valve terminal B and PCM terminal 1BC
• Open circuit between purge solenoid valve terminal B and PCM terminal 1BC
• PCM malfunction
|
![]() |
Diagnostic procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
No
|
Go to the next step.
|
||
3
|
INSPECT PURGE SOLENOID VALVE CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect purge solenoid valve connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 10.
|
No
|
Go to the next step.
|
||
4
|
INSPECT POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch to the ON position (Engine off).
• Measure voltage between purge solenoid valve terminal A and body ground.
• Is voltage B+?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace suspected part, then go to Step 10.
|
||
5
|
INSPECT PURGE SOLENOID VALVE CONTROL CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between purge solenoid valve control terminal B and body ground.
• Is voltage B+?
|
Yes
|
Repair or replace suspected part, then go to Step 10.
|
No
|
Go to the next step.
|
||
6
|
INSPECT PURGE SOLENOID VALVE CONTROL CIRCUIT FOR SHORT TO GROUND
• Turn the ignition switch off.
• Inspect for continuity between purge solenoid valve control terminal B and body ground.
• Is there continuity?
|
Yes
|
Repair or replace suspected part, then go to the Step 10.
|
No
|
Go to the next step.
|
||
7
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 10.
|
No
|
Go to the next step.
|
||
8
|
INSPECT PURGE SOLENOID VALVE CONTROL CIRCUIT FOR OPEN CIRCUIT
• Turn the ignition switch off.
• Inspect continuity between purge solenoid valve terminal B and PCM terminal 1BC.
• Is there continuity?
|
Yes
|
Go to the next step.
|
No
|
Repair or replace suspected part, then go to the Step 10.
|
||
9
|
INSPECT PURGE SOLENOID VALVE
• Inspect the purge solenoid valve.
• Is there any malfunction?
|
Yes
|
Replace purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZI-3.7].), then go to Step 10.
|
No
|
Go to the next step.
|
||
10
|
VERIFY TROUBLESHOOTING OF DTC P0443 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from PCM memory using M‐MDS.
• Perform the “KOEO or KOER self-test” using the M‐MDS.
• Is the PENDING CODE same DTC present?
|
Yes
|
Replace PCM, then go to the next step.
|
No
|
Go to the next step.
|
||
11
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [MZI-3.7].)
|
No
|
Troubleshooting completed.
|
