PCM REMOVAL/INSTALLATION [MZI-3.7]

id0140c3802400

Note

•  For replace the PCM, Setup the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION [MZI-3.7].)

1.  Disconnect the negative battery cable.

2.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7])

Note

•  Only 2 PCM connectors.

3.  Disconnect connectors.

4.  Remove PCM and bracket as and assembly.

5.  Remove PCM from bracket.

6.  When replacing the PCM on the vehicles, perform the following.

•  PCM parameter reset. (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [ADVANCED KEYLESS SYSTEM].) (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM].)

7.  Install in the reverse order of removal.

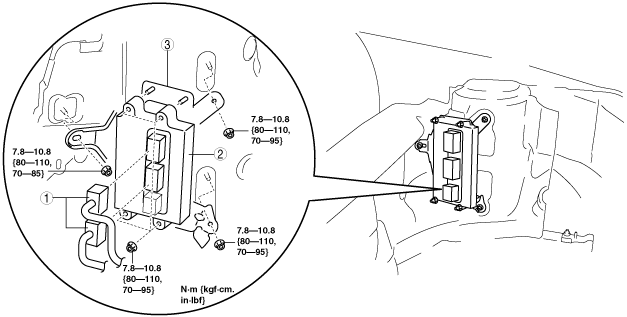

ac9wzw00000130

1	PCM connector
2	PCM
3	PCM bracket
