CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZI-3.7]

id0140c3800600

Note

•  Disconnect the connector after the CKP sensor is removed to prevent the CKP sensor from falling off.

•  The bolt and sensor are integrated and cannot be pulled out.

•  When removing the CKP sensor, be careful not to drop the tool.

•  The bolt and sensor must be pulled in different directions. Pull them as indicated in the figure.

ac9uuw00000460

1.  Disconnect the negative battery cable.

2.  Remove the following part for easier access.

1.  Remove the rear HO2S (LH). (See REAR HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7].)

2.  Remove the WU-TWC (LH) bracket (L type). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Remove the WU-TWC (LH).(See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

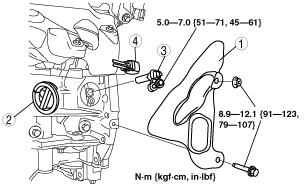

3.  Remove in the order indicated in the table.

ac9wzw00000096

1	Insulator
2	Cover
3	CKP sensor
4	CKP sensor connector

4.  Install in the reverse order of removal.
