FRONT HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [MZI-3.7]

id0140c3804800

Front HO2S (LH) Removal/Installation

1.  Disconnect the negative battery cable.

2.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7].)

3.  Disconnect the front HO2S (LH) connector.

Note

•  If necessary, lubricate the front HO2S with Penetrating and Lock Lubricant loosen to aid in removal.

4.  Remove the front HO2S (LH) using the SST.

ac9uuw00000470

Note

•  Apply a light coat of anti-seize lubricant to the threads of the front HO2S.

5.  Install in the reverse order of removal.

Front HO2S (RH) Removal/Installation

1.  Disconnect the negative battery cable.

2.  Remove the following part for easier access.

1.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

3.  Disconnect the front HO2S (RH) connector.

Note

•  If necessary, lubricate the front HO2S with Penetrating and Lock Lubricant loosen to aid in removal.

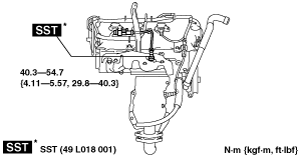

4.  Remove the front HO2S (RH) using the SST.

ac9wzw00000157

Note

•  Apply a light coat of anti-seize lubricant to the threads of the front HO2S.

5.  Install in the reverse order of removal.
