DTC P0642:00 [MZI-3.7]
id0102d2315500
|
DTC P0642:00 |
Sensor reference voltage circuit low |
|---|---|
|
DETECTION CONDITION
|
• Indicates the reference voltage circuit is lower than reference voltage minimum.
|
|
POSSIBLE CAUSE
|
• Fuel tank pressure sensor connector or terminal malfunction
• PCM connector or terminal malfunction
• Short to ground between fuel tank pressure sensor terminal A and PCM terminal 1D
• Fuel tank pressure sensor malfunction
• PCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT FUEL TANK PRESSURE SENSOR CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the fuel tank pressure sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/ pulled-out pins, corrosion).
• Are there any malfunction?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
5
|

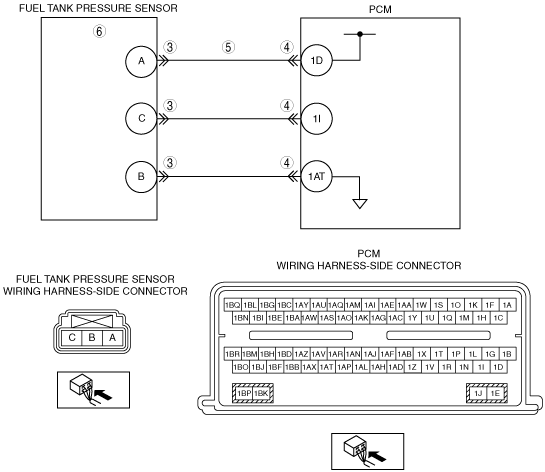

INSPECT FUEL TANK PRESSURE SENSOR CIRCUIT FOR SHORT TO GROUND
• Fuel tank pressure and PCM connectors are disconnected.
• Turn the ignition switch off.
• Inspect the continuity between fuel tank pressure sensor terminal A (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace suspected part, then go to Step 7.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT FUEL TANK PRESSURE SENSOR
• Inspect the fuel tank pressure sensor.
• Is there any malfunction?
|
Yes
|
Replace the evaporative hose component, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
7
|
VERIFY TROUBLESHOOTING OF DTC P0642:00 HAS BEEN COMPLETED
• Verify that all disconnected connectors reconnected.
• Clear the DTC from the PCM memory using the M-MDS.
• Perform the KOEO or KOER self-test.
• Is the PENDING CODE for the DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [MZI-3.7].)
|
|
No
|
Troubleshooting completed.
|
||
