FUEL SYSTEM LOCATION INDEX [MZI-3.7]

id0114d2800100

Engine Compartment Side

ac9wzw00002877

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL INJECTOR INSPECTION [MZI-3.7].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZI-3.7].)
3	Fuel pump relay (See RELAY INSPECTION.)

Fuel Tank Side

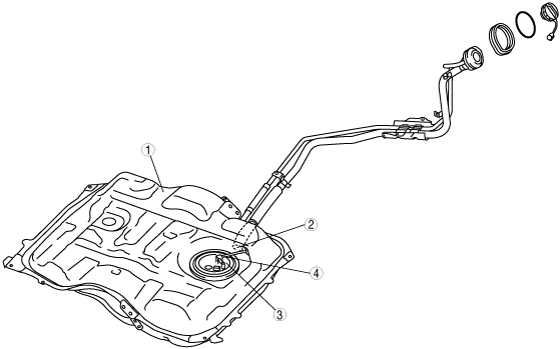

2WD

ac9wzw00000865

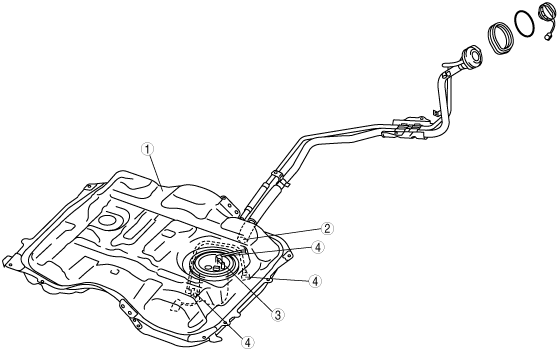

4WD

ac9wzw00000866

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL TANK INSPECTION [MZI-3.7].)
2	Non-return valve (See NON-RETURN VALVE INSPECTION [MZI-3.7].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZI-3.7].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZI-3.7].) (See FUEL PUMP UNIT INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZI-3.7].)
