EMISSION SYSTEM LOCATION INDEX [MZI-3.7]

id0116d2803700

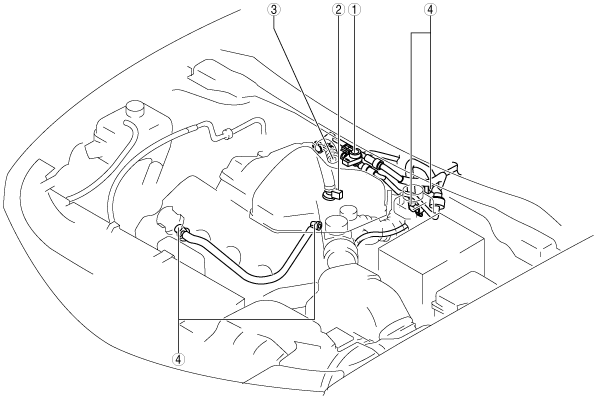

Engine Compartment Side

ac9wzw00002878

1	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See PURGE SOLENOID VALVE INSPECTION [MZI-3.7].)
2	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZI-3.7].)
3	PCV fitting (See POSITIVE CRANKCASE VENTILATION (PCV) FITTING REMOVAL/INSTALLATION [MZI-3.7].) (See POSITIVE CRANKCASE VENTILATION (PCV) FITTING INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)

Exhaust System Side

ac9wzw00002206

1	WU-TWC (RH)
2	WU-TWC (LH)

Fuel Tank Side

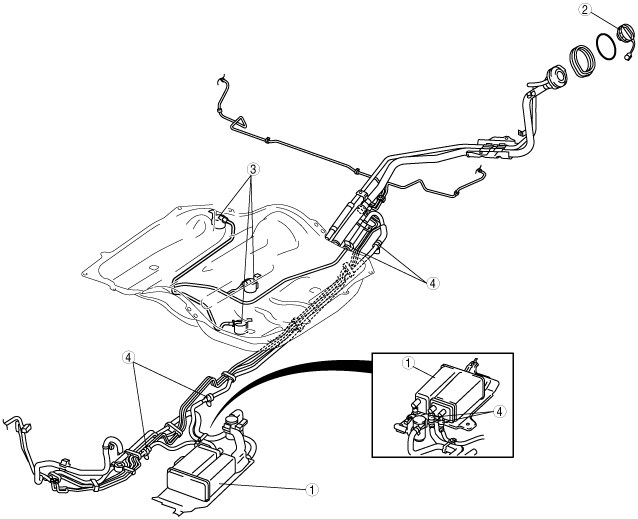

2WD

ac9wzw00000886

4WD

ac9wzw00000887

1	Charcoal canister, CV solenoid valve, air filter component (See CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT REMOVAL/INSTALLATION [MZI-3.7].) (See CHARCOAL CANISTER, CANISTER VENT (CV) SOLENOID VALVE, AIR FILTER COMPONENT INSPECTION [MZI-3.7].)
2	Fuel-filler cap
3	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZI-3.7].) (See ROLLOVER VALVE INSPECTION [MZI-3.7].) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZI-3.7].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZI-3.7].)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZI-3.7].)
