CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

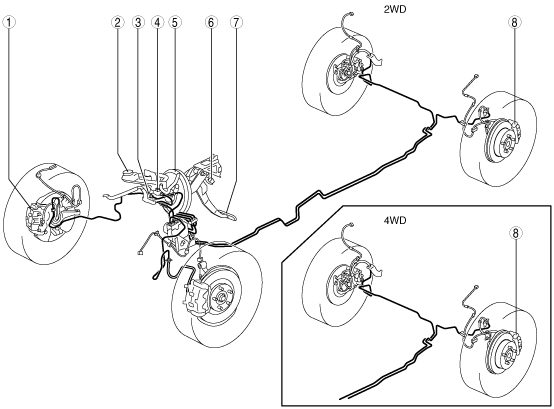

L.H.D.

ac9wzw00000857

R.H.D.

ac9wzw00002493

1	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (FRONT) REPLACEMENT.) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION.)
2	Brake fluid reserve tank (See AIR BLEEDING.)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].) (See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)
4	Brake fluid level sensor (See BRAKE FLUID LEVEL SENSOR INSPECTION.)
5	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D.].) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [R.H.D.].)
6	Brake switch (See BRAKE SWITCH INSPECTION.)
7	Brake pedal (See BRAKE PEDAL INSPECTION [L.H.D.].) (See BRAKE PEDAL INSPECTION [R.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
8	Rear brake (disc) (See REAR BRAKE (DISC) INSPECTION.) (See REAR BRAKE (DISC) REMOVAL/INSTALLATION.) (See DISC PAD (REAR) REPLACEMENT.) (See CALIPER (REAR) DISASSEMBLY/ASSEMBLY.) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION [2WD].) (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION [4WD].)
