DTC P0712:00

TFT sensor circuit low

DETECTION CONDITION

•  Conditions: TCM communication normal

•  Circumstances: ATF temperature of 200 °C {392 °F} or above detected

•  Time period: Determined after 6 times lasting 10 or more seconds

Diagnostic support note:

•  The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.

•  The AT warning light illuminates.

•  PENDING CODE is not available.

•  FREEZE FRAME DATA is available.

•  The DTC is stored in the TCM memory.

FAIL-SAFE FUNCTION

•  Inhibits learning control

•  Inhibits slip control

•  Fixes ATF temperature value at 80 °C {176 °F}

POSSIBLE CAUSE

•  Coupler component connector or terminal malfunction

•  Short to GND in wiring harness between TFT sensor and TCM terminal B8

•  TFT sensor malfunction

•  TCM malfunction

DTC P0712:00	TFT sensor circuit low
DETECTION CONDITION	• Conditions: TCM communication normal • Circumstances: ATF temperature of 200 °C {392 °F} or above detected • Time period: Determined after 6 times lasting 10 or more seconds Diagnostic support note: • The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle. • The AT warning light illuminates. • PENDING CODE is not available. • FREEZE FRAME DATA is available. • The DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	• Inhibits learning control • Inhibits slip control • Fixes ATF temperature value at 80 °C {176 °F}
POSSIBLE CAUSE	• Coupler component connector or terminal malfunction • Short to GND in wiring harness between TFT sensor and TCM terminal B8 • TFT sensor malfunction • TCM malfunction

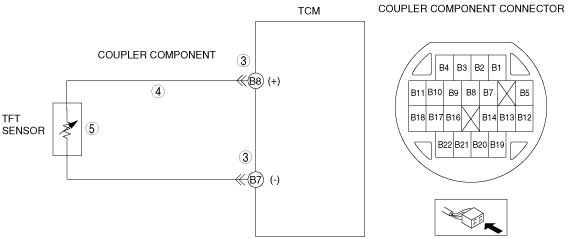

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA been recorded on the repair order?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY • Verify related Service Information availability. • Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	INSPECT COUPLER COMPONENT CONNECTOR FOR POOR CONNECTION • Switch the ignition OFF. • Remove the TCM. (See TCM REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].) • Inspect for poor connection (such as damaged/pulled-out pins, corrosion). • Is there any malfunction?	Yes	Repair or replace the terminal, then go to Step 6.
3		No	Go to the next step.
4	INSPECT TFT SENSOR SIGNAL CIRCUIT FOR SHORT TO GND • Switch the ignition OFF. • Inspect for continuity between coupler component terminal B8 and body GND. • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to GND, then go to Step 6.
4		No	Go to the next step.
5	INSPECT TFT SENSOR • Inspect the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AY6A-EL, AY6AX-EL].) • Is there any malfunction?	Yes	Replace the TFT sensor, then go to the next step. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
5		No	Go to the next step.
6	VERIFY DTC TROUBLESHOOTING COMPLETED • Make sure to reconnect all the disconnected connectors. • Clear the DTC using the M-MDS. • Perform the following procedure to ensure that the DTC has been resolved: 1. Start the engine. 2. Warm up the engine to normal operating temperature. 3. Drive the vehicle in D position for 150 s or more. • Is the same DTC present?	Yes	Replace the TCM, then go to the next step. (See TCM REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)
6		No	Go to the next step.
7	VERIFY NO DTCs ARE PRESENT • Perform the “Reading DTCs Procedure”. (See ON-BOARD DIAGNOSTIC SYSTEM DTC INSPECTION [AY6A-EL, AY6AX-EL].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSTIC SYSTEM DTC TABLE [AY6A-EL, AY6AX-EL].)
7		No	DTC troubleshooting completed.
