TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [AY6A-EL, AY6AX-EL]

id0517k3298100

Caution

•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

•  Do not damage the terminals.

On-Vehicle Inspection

1.  Disconnect the negative battery cable.

2.  Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Remove the TCM. (See TCM REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL].)

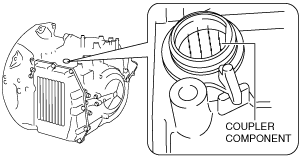

4.  Measure the resistance between coupler component terminals B7 and B8.

am6xuw00004048

am6xuw00003102

•  If there is any malfunction, inspect the coupler component for continuity. (See COUPLER COMPONENT INSPECTION [AY6A-EL, AY6AX-EL].)

•  If coupler component has no malfunction, perform the “Off-Vehicle Inspection“. (See Off-Vehicle Inspection.)

TFT sensor specification

Off-Vehicle Inspection

1.  Place the TFT sensor and a thermometer in ATF as shown in the figure, and heat the ATF gradually.

am6xuw00004049

Warning

•  A hot ATF and beaker can cause severe burns. Do not touch them.

2.  Measure the resistance between coupler component terminals B7 and B8.

am6xuw00003102

•  If there is any malfunction, replace the coupler component.

TFT sensor specification
