POWER LIFTGATE (PLG) TOUCH SENSOR REMOVAL/INSTALLATION

id091100001100

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  PLG arm (See POWER LIFTGATE (PLG) DRIVE UNIT REMOVAL/INSTALLATION.)

(3)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

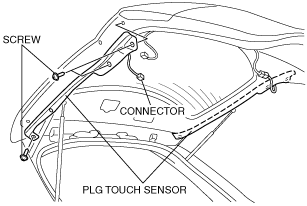

3.  Disconnect the PLG touch sensor connector.

ac9uuw00000896

4.  Remove the screws.

5.  Remove the PLG touch sensor.

6.  Install in the reverse order of removal.
