JACKING POSITIONS, VEHICLE LIFT AND SAFETY STAND (RIGID RACK) POSITIONS
id000000702700

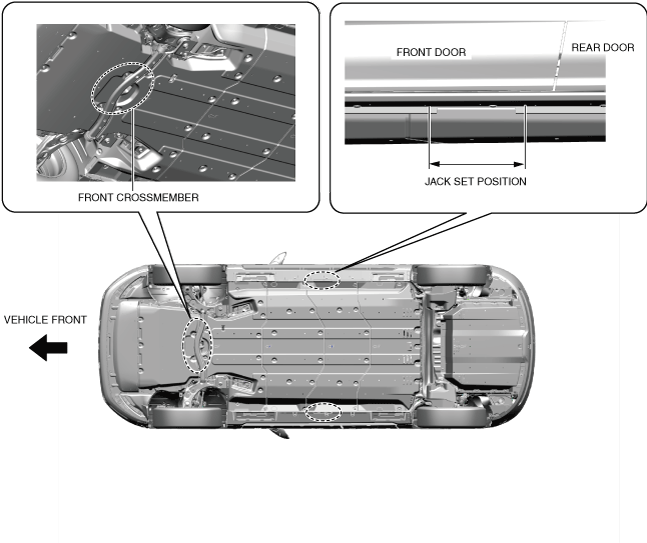

Vehicle support positions when using a garage jack
• The positions where the vehicle is supported by the garage jack when jacking up are shown in the figure below.
-
Caution
-

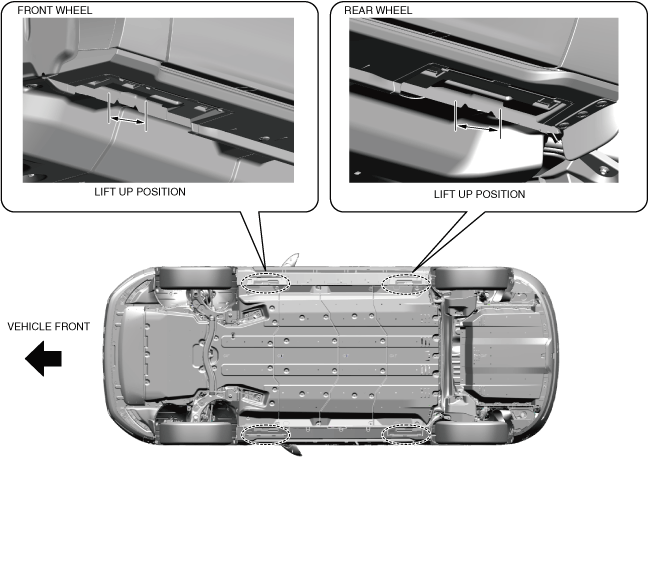

Vehicle support position when using auto-lift or safety stand (rigid rack) installation position
• The following positions are shown in the figure below.
-
― Positions where the vehicle is supported by the auto lift when jacking up
― Safety stand (rigid rack) installation position
-
Warning
-
• If the vehicle is not stabilized while on the lift, it could fall off while it is being lifted or during servicing, leading to serious injury or death, and vehicle damage. Before lifting up, verify that the vehicle is level and stable.
Cautions when using a flat lift
-
Warning
-
• Verify that the center parts of the attachments are set to the lift up positions (side sill) and then lift up the vehicle. If the attachments are set to the incorrect positions when the vehicle is lifted up, the vehicle may fall off the lift and cause a serious injury or death.
-
Caution
-
• If the vehicle is lifted up without using the proper attachments, deformation and damage may occur due to the lift contacting the under cover. Use attachments which secure a distance of 85 mm {3.3 in} or more between the side sill and the lift.
