REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400700200

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the protector.

a30zzw00000011

3.  Floor under cover No.4. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

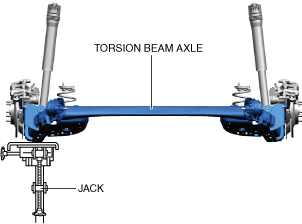

4.  Support the torsion beam axle using a jack.

a30zzw00000012

Warning

•  If the torsion beam axle falls off while it is removed/installed, it may cause serious injury or death, or vehicle damage. Always use a jack when removing/installing the torsion beam axle and verify that it is securely supported.

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

a30zzw00000013

1	Bolt (rear shock absorber lower side)
2	Nut (rear shock absorber upper side)
3	Rear shock absorber
