REAR SHOCK ABSORBER DISASSEMBLY/ASSEMBLY

id021400700300

Special service tool (SST)

49 G027 006

Installer
49 H027 002

Bearing remover

Replacement part

Piston rod nut

Quantity: 1

Location of use: Rear shock absorber

Oil and Chemical Type

Rubber grease

Type: NIPPON GREASE RUBBER GREASE

1.  Remove the rear shock absorber. (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

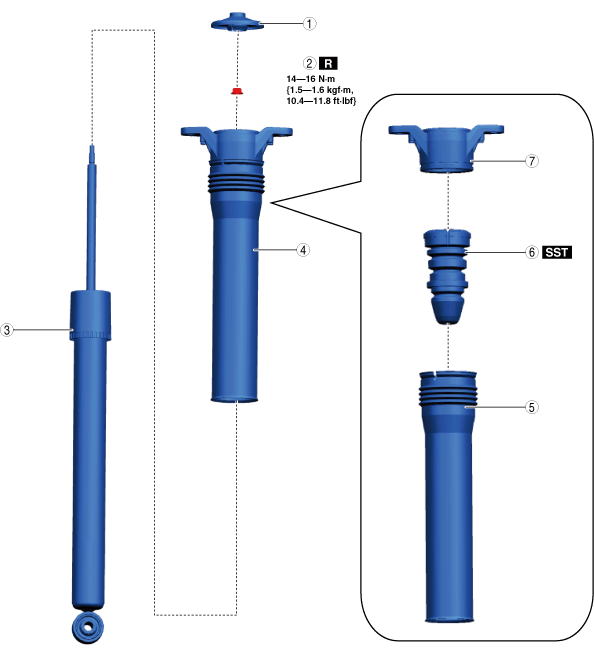

a30zzw00000017

1
Cap
2
Piston rod nut
(See Piston Rod Nut Removal Note.)
(See Piston Rod Nut Installation Note.)
3
Rear shock absorber
4
Dust boot, bump stopper, mounting rubber component
5
Dust boot
(See Dust boot, Bump stopper, Mounting rubber Assembly Note.)
6
Bump stopper
(See Dust boot, Bump stopper, Mounting rubber Assembly Note.)
7
Mounting rubber
(See Dust boot, Bump stopper, Mounting rubber Assembly Note.)


Piston Rod Nut Removal Note

1.  Remove the piston rod nut using an offset box-end wrench and pliers.

a30zzw00003788

Dust boot, Bump stopper, Mounting rubber Assembly Note

1.  Wipe off grease on the bump stopper using a cloth.

2.  Apply rubber grease to the inside of the bump stopper.

am3zzw00024756

Grease application amount
0.2—0.5 g {0.008—0.017 oz}

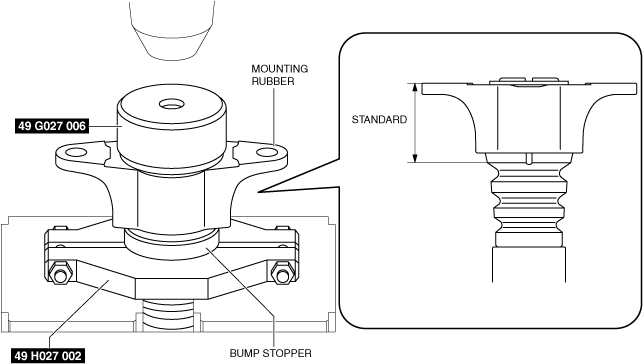

3.  Assemble the bump stopper and the mounting rubber using the SSTs and a press.

am3zzw00027647

4.  Verify that the assembly position of the bump stopper and the mounting rubber is within the standard.

Standard
73 mm {2.874 in} or less

5.  Install the dust boot.


Piston Rod Nut Installation Note

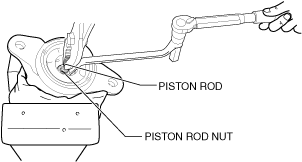

1.  Tighten the piston rod nut to the specified torque using an offset box-end wrench and pliers.

a30zzw00003789
