BRAKE SWITCH INSPECTION

id041100700600

Caution

•  Inspect the brake switch with it installed to the brake pedal, otherwise the brake switch may not operate normally. If the brake switch is removed from the brake pedal, replace the brake switch with a new one.

1.  Disconnect the negative Lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side front heat duct No.1. (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the brake switch connector. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)

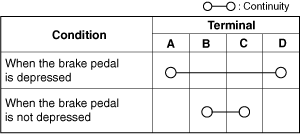

4.  Verify that the continuity is as indicated in the table.

am3zzw00034746

am6xuw00010662

•  If not as indicated in the table, replace the brake switch. (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].) (See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)
