ELECTRIC PARKING BRAKE SWITCH INSPECTION

id041200700500

Continuity Inspection

1.  Disconnect the negative Lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

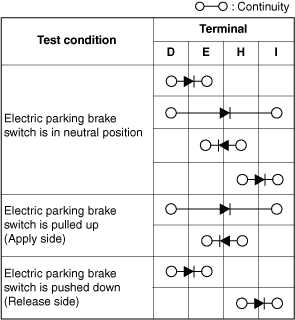

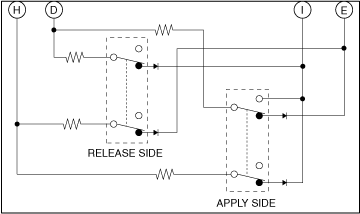

3.  Verify that the continuity is as indicated in the table.

ac30zw00002691

am3zzw00026467

am3zzw00032187

•  If not as indicated in the table, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Illumination Light Inspection

Note

•  The illumination light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative Lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to electric parking brake switch terminal K, and connect terminal B to ground.

ac30zw00002692

4.  Verify that the illumination light turns on.

am3zzw00026469

•  If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Indicator Light Inspection

Note

•  The indicator light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

1.  Disconnect the negative Lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to electric parking brake switch terminal L, and connect terminal F to ground.

ac30zw00002693

4.  Verify that the indicator light turns on.

am3zzw00026470

•  If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
