•  The indicator turns on to notify the driver of the actual shift position. At this time, the indicator for the actual shift position turns on regardless of the selector lever position.

•  The indicator and the indication on the multi-information display urges the driver to shift to the proper shift position.(See MULTI-INFORMATION DISPLAY [(E)].)

•  The indicator is located on the upper panel.

a30zzn00000882

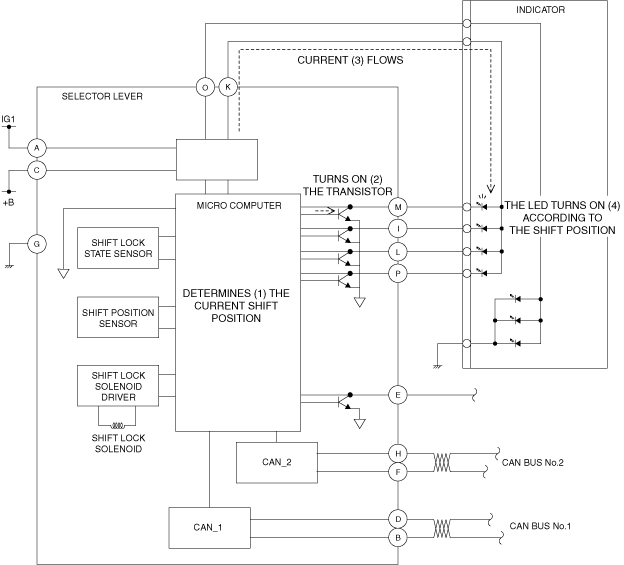

•  The microcomputer in the selector lever determines^*1 (1) the current selector lever position and turns on (2) the transistor in the selector lever.

•  Current (3) flows to the indicator circuit and the LED that corresponds to the shift position turns on (4).
