MULTI-INFORMATION DISPLAY [(E)]

id0922007038x2

Outline

• The multi-information display displays vehicle information in the instrument cluster.

Function/Construction

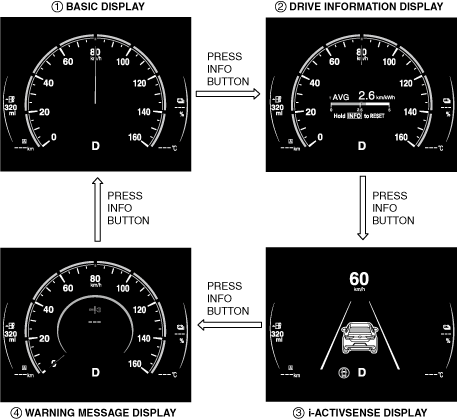

• The instrument cluster configures the indication of the multi-information display based on the CAN signals sent from the related modules and displays it.

Information displayed in multi-information display

• The information displayed by the multi-information display is as follows: Refer to the referenced section for details of the displayed information.

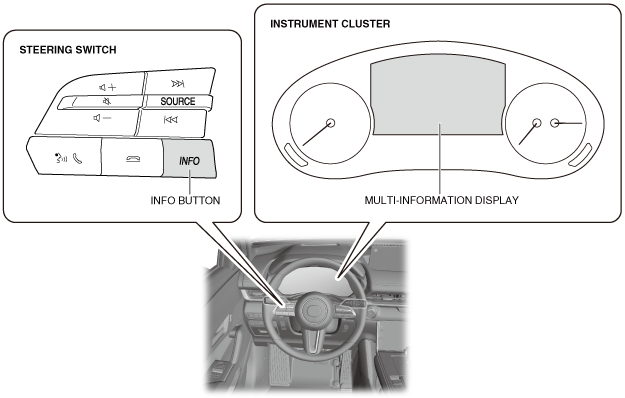

a30zzn00000507

Display information

Reference

Speedometer

(See SPEEDOMETER.)

Odometer/tripmeter

(See ODOMETER/TRIPMETER.)

Ambient temperature display

(See AMBIENT TEMPERATURE DISPLAY [(E)].)

Distance to full discharge display

(See DISTANCE TO FULL DISCHARGE DISPLAY.)

High voltage battery charge display

(See HIGH VOLTAGE BATTERY CHARGE GAUGE/HIGH VOLTAGE BATTERY CHARGE DISPLAY [(E)].)

Average electrical power consumption rate

(See DRIVE INFORMATION DISPLAY.)

Instantaneous electrical power consumption rate

Charging status display

(See CHARGING STATUS DISPLAY.)

i-ACTIVSENSE display

Mazda radar cruise control (MRCC) system display

(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)

Cruising & traffic support (CTS) display/Traffic jam assist (TJA) display

(See CRUISING & TRAFFIC SUPPORT (CTS) [(E)].)

Distance & speed alert (DSA) display

(See DISTANCE & SPEED ALERT (DSA).)

Lane-keep assist system (LAS) display

(See LANE-KEEP ASSIST SYSTEM [(E)].)

Lane departure warning system (LDWS) display

(See LANE DEPARTURE WARNING SYSTEM (LDWS) [(E)].)

Blind spot monitoring (BSM) system display

(See BLIND SPOT MONITORING (BSM) SYSTEM.)

Traffic sign recognition system (TSR) display

(See TRAFFIC SIGN RECOGNITION SYSTEM (TSR) [(E)].)

Emergency lane keeping

(See EMERGENCY LANE KEEPING [ROAD KEEP ASSIST] [(E)].)

(See EMERGENCY LANE KEEPING [BLIND SPOT ASSIST] [(E)].)

Door-ajar warning indication/Liftgate-ajar warning indication

(See WARNING/INDICATION/ALARM [(E)].)

Message screen, warning screen, and system operation screen

(See Message screen, warning screen, and system operation screen.)

Shift position indicator light

(See INDICATOR [A71M].)

Maintenance monitor

Refer to the [MAINTENANCE MONITOR] in the workshop manual.

Display information	Reference
Speedometer	(See SPEEDOMETER.)
Odometer/tripmeter	(See ODOMETER/TRIPMETER.)
Ambient temperature display	(See AMBIENT TEMPERATURE DISPLAY [(E)].)
Distance to full discharge display	(See DISTANCE TO FULL DISCHARGE DISPLAY.)
High voltage battery charge display	(See HIGH VOLTAGE BATTERY CHARGE GAUGE/HIGH VOLTAGE BATTERY CHARGE DISPLAY [(E)].)
Average electrical power consumption rate	(See DRIVE INFORMATION DISPLAY.)
Instantaneous electrical power consumption rate
Charging status display	(See CHARGING STATUS DISPLAY.)
i-ACTIVSENSE display	Mazda radar cruise control (MRCC) system display	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
Cruising & traffic support (CTS) display/Traffic jam assist (TJA) display	(See CRUISING & TRAFFIC SUPPORT (CTS) [(E)].)
Distance & speed alert (DSA) display	(See DISTANCE & SPEED ALERT (DSA).)
Lane-keep assist system (LAS) display	(See LANE-KEEP ASSIST SYSTEM [(E)].)
Lane departure warning system (LDWS) display	(See LANE DEPARTURE WARNING SYSTEM (LDWS) [(E)].)
Blind spot monitoring (BSM) system display	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
Traffic sign recognition system (TSR) display	(See TRAFFIC SIGN RECOGNITION SYSTEM (TSR) [(E)].)
Emergency lane keeping	(See EMERGENCY LANE KEEPING [ROAD KEEP ASSIST] [(E)].) (See EMERGENCY LANE KEEPING [BLIND SPOT ASSIST] [(E)].)
Door-ajar warning indication/Liftgate-ajar warning indication	(See WARNING/INDICATION/ALARM [(E)].)
Message screen, warning screen, and system operation screen	(See Message screen, warning screen, and system operation screen.)
Shift position indicator light	(See INDICATOR [A71M].)
Maintenance monitor	Refer to the [MAINTENANCE MONITOR] in the workshop manual.

Message screen, warning screen, and system operation screen

• The instrument cluster displays the following screens in the multi-information display.

• If the instrument cluster receives message display requests from multiple units, the screens are switched at certain intervals.

—: Not applicable

Screen display		Related module	Reference/function
		PCM	(See WARNING/INDICATION/ALARM [(E)].)
		PCM/Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].) (See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Electric Power Steering (EPS) control module	(See WARNING/INDICATION/ALARM.)
		SAS control module	(See WARNING/INDICATION/ALARM [TWO-STEP DEPLOYMENT CONTROL SYSTEM (E)].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Auto leveling control module/Adaptive LED headlights control module	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		PCM/Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)/Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)/Body control module (BCM)/Adaptive LED headlights control module	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Forward sensing camera (FSC)	(See WARNING/INDICATION/ALARM [(E)].)
		Front radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front radar sensor/Front side radar sensor/Rear side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front radar sensor/Front side radar sensor/Rear side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Front side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Rear side radar sensor	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (optical)/360°view monitor control module	(See WARNING/INDICATION/ALARM [(E)].)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM [(E)].)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit	(See ELECTRIC PARKING BRAKE [(E)].)
		Electronically controlled brake unit	(See AUTOHOLD.)
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Body control module (BCM)/Electronically controlled brake unit/Parking assist unit (optical)/360°view monitor control module/Parking assist unit (ultrasonic)	(See SMART BRAKE SUPPORT (SBS) [FORWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [TURN-ACROSS TRAFFIC].) (See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [REAR CROSSING].)
		Body control module (BCM)/Connectivity master unit	(See DRIVER ATTENTION ALERT SYSTEM.) (See DRIVER MONITORING (DM).)
		Body control module (BCM)/LF control unit	(See IMMOBILIZER SYSTEM.)
		Body control module (BCM)/LF control unit/Steering lock unit	(See STEERING LOCK UNIT [(E)].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See CRUISING & TRAFFIC SUPPORT (CTS) [(E)].)
		PCM	—
		Connectivity master unit	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Connectivity master unit	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Connectivity master unit	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		PCM	—
		Electronically controlled brake unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM.)
		Body control module (BCM)/Electronically controlled brake unit/Parking assist unit (optical)/360°view monitor control module/Parking assist unit (ultrasonic)	(See SMART BRAKE SUPPORT (SBS) [FORWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [TURN-ACROSS TRAFFIC].) (See SMART BRAKE SUPPORT (SBS) [REARWARD DETECTION].) (See SMART BRAKE SUPPORT (SBS) [REAR CROSSING].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Electronically controlled brake unit/SAS control module	(See AUTOHOLD.)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)/Door-electrical supply unit	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)/Electrical supply unit (ESU)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [LIGHTING SYSTEMS].)
		Body control module (BCM)	(See WINDSHIELD WIPER/WASHER SYSTEM.)
		Body control module (BCM)	(See WINDSHIELD WIPER/WASHER SYSTEM.)
		Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/PCM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Body control module (BCM)	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
		Body control module (BCM)/Selector lever	(See KEYLESS ENTRY SYSTEM.) (See ADVANCED KEYLESS ENTRY SYSTEM.)
		Body control module (BCM)/LF control unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).) (See MAZDA RADAR CRUISE CONTROL WITH STOP & GO FUNCTION (MRCC WITH STOP & GO FUNCTION).)
		Forward sensing camera (FSC)/Body control module (BCM)	(See WARNING/INDICATION/ALARM [(E)].)
		Parking assist unit (ultrasonic)	(See WARNING/INDICATION/ALARM [(E)].)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See CRUISING & TRAFFIC SUPPORT (CTS) [(E)].)
		SAS control module	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).)
		SAS control module	(See SEAT BELT [(E)].)
		SAS control module	(See SEAT BELT [(E)].)
		Driver monitoring camera unit	(See WARNING/INDICATION/ALARM [(E)].)
		PCM	(See WARNING/INDICATION/ALARM [(E)].)
		Emergency call unit	(See WARNING/INDICATION/ALARM [(E)].)
		Body control module (BCM)/Front radar sensor/Forward sensing camera (FSC)	(See DISTANCE & SPEED ALERT (DSA).)
		Selector lever	(See WARNING/INDICATION/ALARM [A71M].)
		Selector lever	(See WARNING/INDICATION/ALARM [A71M].)
		Parking lock actuator	(See WARNING/INDICATION/ALARM [A71M].)
		BECM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		DC-DC converter	(See REGENERATIVE BRAKE COOPERATIVE CONTROL.)
		BECM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		BECM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		DC-DC converter	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		DC-DC converter	(See 12 V POWER SUPPLY SYSTEM.)
		BECM	(See HIGH VOLTAGE BATTERY SYSTEM.)
		BECM/DC-DC converter	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		BECM/DC-DC converter	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		BECM/DC-DC converter	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Charge port-electrical supply unit	(See CHARGING SYSTEM [(E)].)
		Charge port-electrical supply unit	(See CHARGING SYSTEM [(E)].)
		Selector lever	(See SHIFT-BY-WIRE SYSTEM [A71M].)
		PCM	(See COOLING SYSTEM.)
		BECM/Charge port-electrical supply unit	(See BATTERY HEATER SYSTEM.)
		BECM/Charge port-electrical supply unit	(See BATTERY HEATER SYSTEM.)
		BECM/Charge port-electrical supply unit	(See BATTERY HEATER SYSTEM.)
		PCM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		PCM/Drive motor control module	(See WARNING/INDICATION/ALARM [(E)].)
		PCM/BECM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		DC-DC converter	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Charge port-electrical supply unit	(See CHARGING SYSTEM [(E)].)
		PCM/BECM/Charge port-electrical supply unit	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		Approaching vehicle audible system device	(See WARNING/INDICATION/ALARM [(E)].)
		Approaching vehicle audible system device	(See WARNING/INDICATION/ALARM [(E)].)
		Parking lock actuator	(See PARKING LOCK ACTUATOR [A71M].)
		Selector lever	(See SHIFT-BY-WIRE SYSTEM [A71M].)
		Selector lever	(See SHIFT-BY-WIRE SYSTEM [A71M].)
		Parking lock actuator	(See PARKING LOCK ACTUATOR [A71M].)
		Parking lock actuator	(See PARKING LOCK ACTUATOR [A71M].)
		PCM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
		PCM	(See INSTRUMENTATION/DRIVER INFO/WARNING ALARM.)
