REFRIGERANT PRESSURE CHECK

id071000700000

1.  Install the manifold gauge set. (See MANIFOLD GAUGE SET CONNECTION.)

2.  Start the EV system.

3.  Prepare the vehicle as follows.

―  Vehicle is not exposed to solar radiation

―  A/C switch: ON

―  Air intake port: REC

―  Airflow mode: VENT

―  Airflow temperature: MAX COLD

―  Airflow volume: MAX HI

―  Hood: Open

―  All the doors and the liftgate: Closed

―  All the windows: Closed

―  Active air shutter (with active air shutter): Open

4.  Wait for 8 min after the EV system is started.

5.  Record the pressure indicated on the manifold gauge and ambient temperature for 2 min.

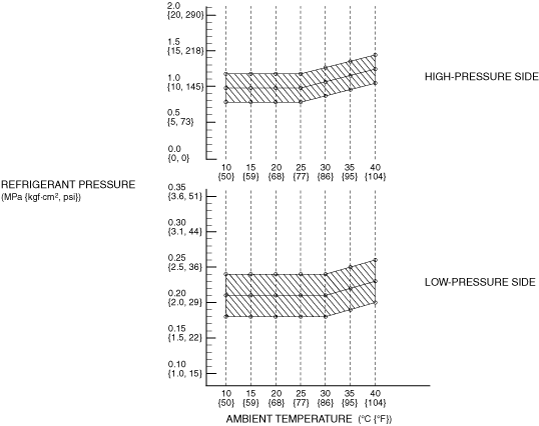

6.  Verify that there are high/low pressure value readings within the shaded areas of the figure.

e-SKYACTIV (HFO-1234yf)

a30zzw00001702
