HEAT PUMP CONTROL UNIT [FULL-AUTO AIR CONDITIONER]

id0740a1700100


Purpose, function

•  The heat pump control unit controls the following system based on the signals from the dash-electrical supply unit/each sensor/switch.
―  Air conditioner system

Structure/construction

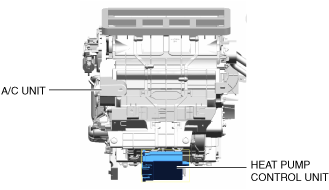

•  The heat pump control unit is located on the lower part of the A/C unit.
a30jjn00000159

Operation

•  For the heat pump control unit operation, refer to the following system.
―  Air conditioner system (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER].)
