CLIMATE CONTROL UNIT [FULL-AUTO AIR CONDITIONER]


id0740a1700500


Purpose

•  The climate control unit displays the operation and setting status of the air conditioner system settings.

Function

•  The climate control unit outputs the input signals from each sensor and the operation signal from the operation panel to the dash-electrical supply unit.
•  The climate control unit displays the following on the display panel.
―  Airflow temperature setting
―  Airflow mode setting
―  Air intake setting
―  Auto control setting
―  Airflow volume setting
―  A/C setting
―  ECO mode setting
―  Display setting
―  Heated steering wheel setting (With heated steering wheel system)
―  Seat warmer setting (With seat warmer)

Structure/Construction

•  The climate control unit consists of a control panel, display panel, and a control unit.
•  The switches and icons shown in the figure are positioned on the control panel.
•  The air conditioner setting is displayed in the display panel.

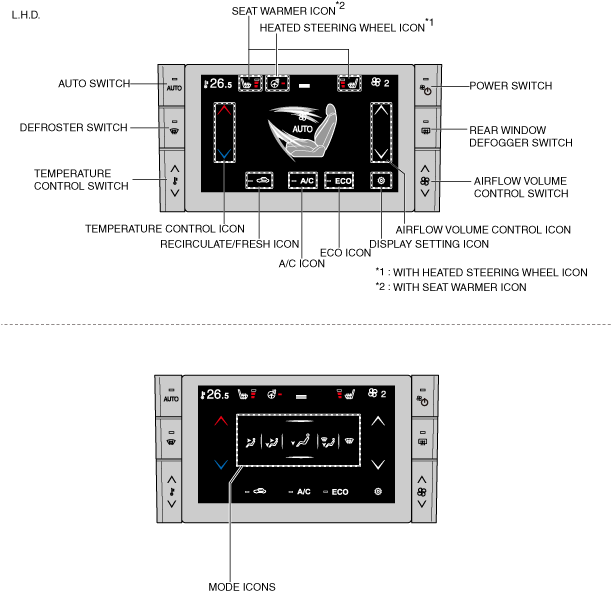

a30jjn00000182

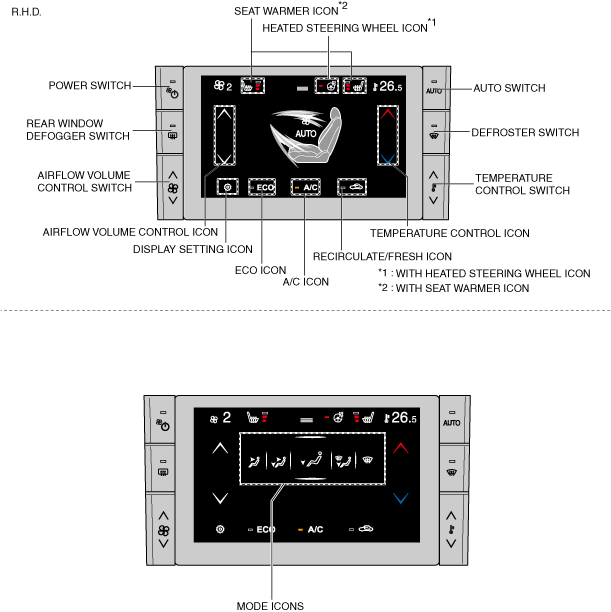

a30zzn00002241

Operation

•  For the climate control unit operation, refer to the [FULL-AUTO AIR CONDITIONING SYSTEM [FULL-AUTO AIR CONDITIONER]]. (See FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER].)
