REAR BUCKLE REMOVAL/INSTALLATION

id081100700800

1.  Switch the main power OFF.

2.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

4.  Disconnect the connectors.

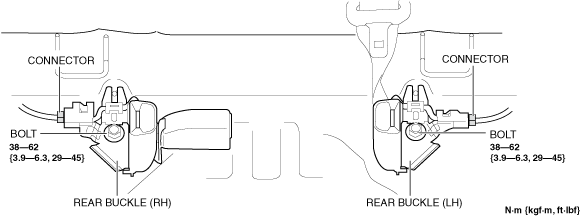

a30zzw00002578

5.  Remove the bolts.

6.  Remove the rear buckle.

7.  Install in the reverse order of removal.
