HOOD HINGE REMOVAL/INSTALLATION

id091000040500

1.  Remove the hood. (See HOOD REMOVAL/INSTALLATION.)

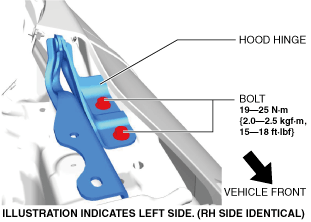

2.  Remove the bolts and remove the hood hinge.

a30zzw00000428

3.  Install in the reverse order of removal.

4.  Adjust the hood. (See HOOD ADJUSTMENT.)
