REAR BUMPER STAY REMOVAL/INSTALLATION

id091000041600

1.  Remove the rear under cover. (See REAR UNDER COVER REMOVAL/INSTALLATION.)

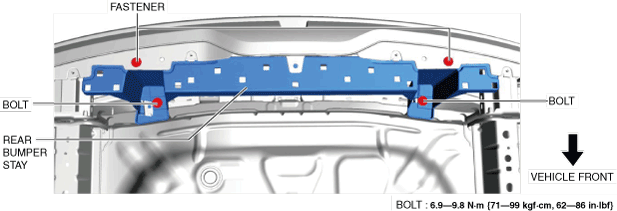

2.  Remove the fasteners.

a30zzw00000485

3.  Remove the bolts.

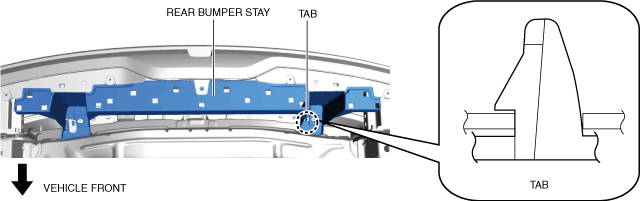

4.  Detach the tab at the position shown in the figure.

a30zzw00000486

5.  Remove the rear bumper stay.

6.  Install in the reverse order of removal.
