FRONT FENDER INSULATOR No.2 REMOVAL/INSTALLATION

id091000042100

1.  Remove the following parts:

(1)  Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

(2)  Front tires (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

(3)  Front mudguard (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Move front fender insulator No.2 in the order of arrows (1), (2), and (3) shown in the figure and remove it.

a30zzw00000498

3.  Install in the reverse order of removal. (See Front Fender Insulator No.2 Installation Note.)

Front Fender Insulator No.2 Installation Note

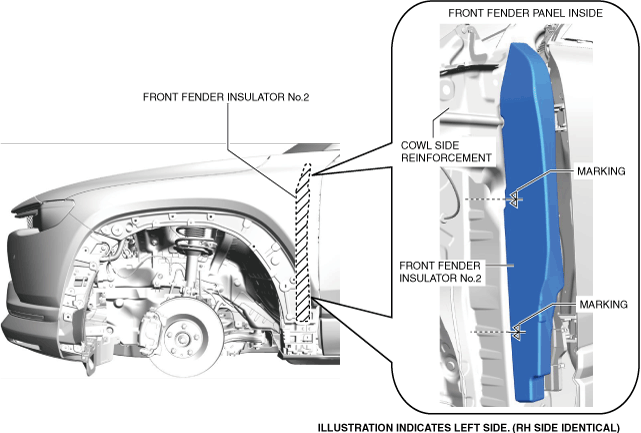

1.  Install the front fender insulator No.2 at the position shown in the figure.

a30zzw00000499
