REAR DOOR REMOVAL/INSTALLATION

id091100043200

Warning

•  Removing the rear door without supporting it could cause the rear door to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the rear door from falling.

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove bolt A.

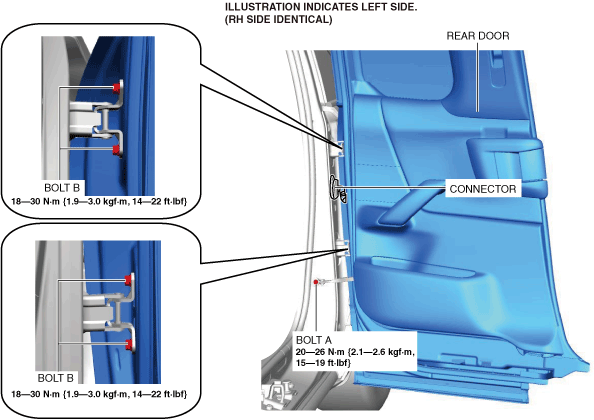

a30zzw00000525

3.  Disconnect the connector. (See Connector Removal Note.)

4.  Remove bolts B.

5.  Remove the rear door.

6.  Install in the reverse order of removal.

7.  Adjust the rear door. (See DOOR ADJUSTMENT.)

Connector Removal Note

1.  Partially peel back the rubber boot in the direction of the arrow shown in the figure and remove it from the connector.

am3zzw00029624

2.  While pressing the tab in the direction of arrow (1) shown in the figure, pull the connector in the direction of arrow (2).

am3zzw00029625
