REAR DOOR CHECKER REMOVAL/INSTALLATION

id091100043300

Replacement parts

1.  Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)

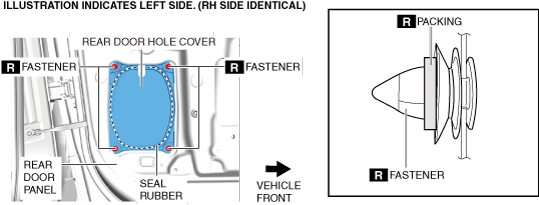

2.  Use the remover tool to detach the fasteners from the rear door panel.

a30zzw00003578

3.  Remove the rear door hole cover.

4.  Remove the bolt.

a30zzw00000527

5.  Remove the nuts.

a30zzw00000528

6.  Pull out the rear door checker from the installation hole of the rear door hole cover.

7.  Install in the reverse order of removal. (See Rear Door Hole Cover Installation Note.)

Rear Door Hole Cover Installation Note

1.  If the seal rubber on the rear door hole cover is damaged, replace the rear door hole cover.

a30zzw00003579
