SENSOR COVER REMOVAL/INSTALLATION

id091200700800

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

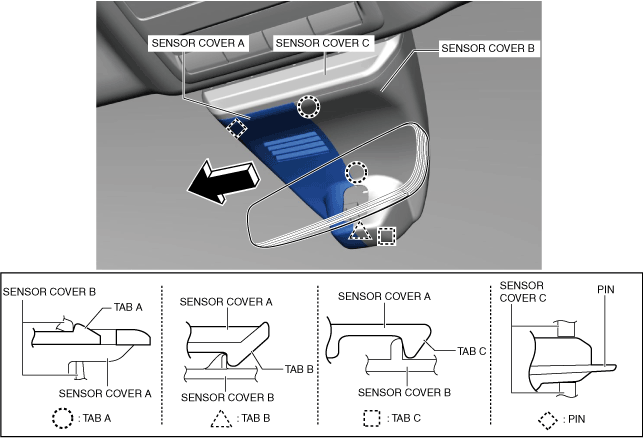

2.  Pull the sensor cover A in the direction of the arrow shown in the figure and remove sensor cover A while detaching the pin and tabs A, tab B, and tab C.

am3zzw00029221

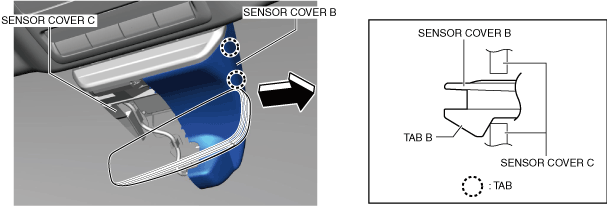

3.  Pull sensor cover B in the direction of the arrow shown in the figure and remove sensor cover B while detaching the tabs.

ac30zw00001393

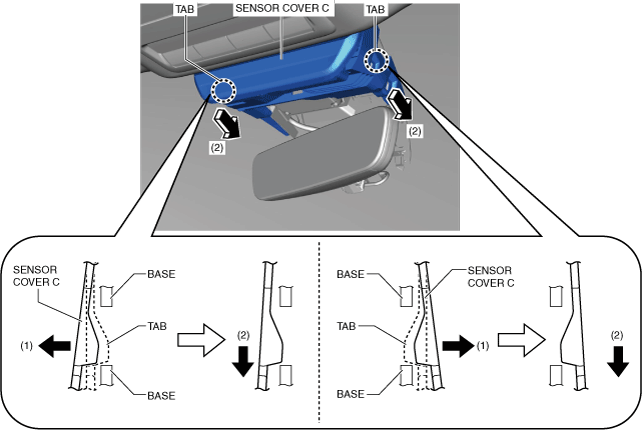

4.  Move the tab of sensor cover C in the direction of arrow (1) shown in the figure.

a30zzw00000561

5.  Pull sensor cover C in the direction of arrow (2) shown in the figure and remove sensor cover C and the indicator unit as one unit while detaching the tabs.

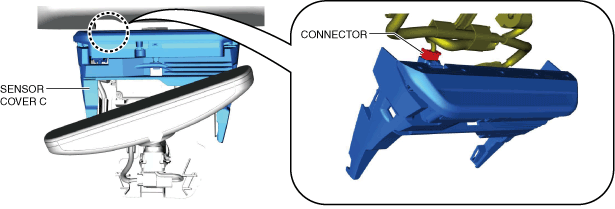

6.  Disconnect the connectors.

ac30zw00001395

Note

•  When replacing sensor cover C, remove the indicator unit. (See INDICATOR UNIT REMOVAL/INSTALLATION.)

7.  Install in the reverse order of removal.
