INDICATOR UNIT REMOVAL/INSTALLATION

id092200702100

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

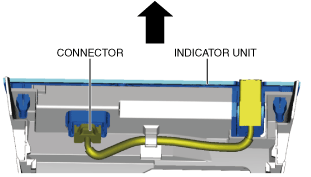

3.  Disconnect the connectors.

a30zzw00006956

4.  Remove the indicator unit from the sensor cover.

5.  Remove the screw.

a30zzw00003952

6.  Remove the indicator unit short code from the indicator unit.

7.  Install in the reverse order of removal.
