REARVIEW MIRROR REMOVAL/INSTALLATION

id091200702400

1.  Disconnect the negative lead-acid battery terminal. (See NEGATIVE LEAD-ACID BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

Caution

•  If the rearview mirror and the mirror base are detached, the rearview mirror may fall off and be damaged. When removing the rearview mirror, perform the work while holding the rearview mirror by hand.

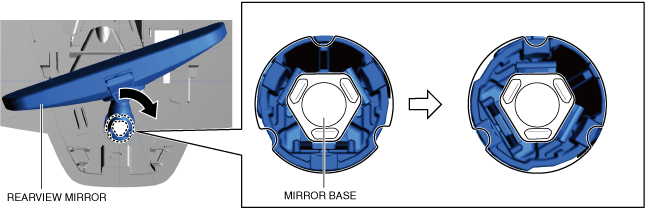

3.  Move the rearview mirror in the direction of the arrow shown in the figure to detach the rearview mirror from the mirror base.

a30zzw00004324

4.  Remove the rearview mirror. (See Rearview Mirror Installation Note.)

5.  Install in the reverse order of removal.

Rearview Mirror Installation Note

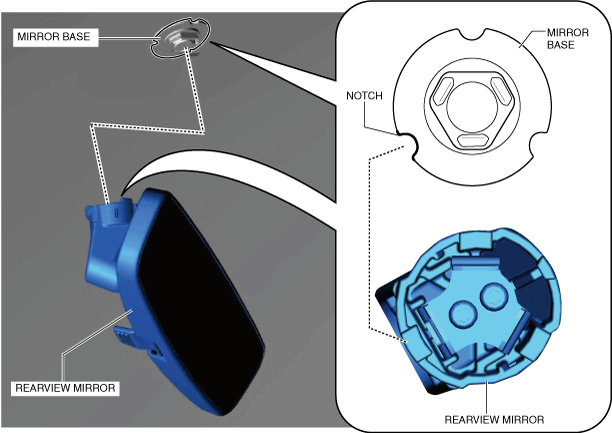

1.  Align the projection on the rearview mirror with the notch on the mirror base.

ac30zw00001381
