POWER WINDOW MAIN SWITCH
id091200703900
Purpose
• Each door glass can be opened/closed with the occupant seated in the cabin using the power window main switch, improving convenience for the occupants.
Function
• The power window main switch switches circuits according to the following switch operation.
-
― Manual open
― Manual close
― Auto open
― Auto close

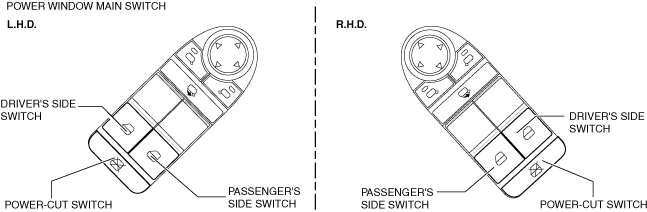

Construction
• The power window main switch consists of the following parts:
-
― Driver's side switch
― Passenger's side switch
― Power-cut switch
Operation
-
Note
-
• For the specific operation of the power window main switch, refer to [POWER WINDOW SYSTEM]. (See
POWER WINDOW SYSTEM.)
Power window main switch (Example: manual close operation)
1. Contact points for door glass opening/closing can be changed by operating the power window main switch.
