POWER OUTER MIRROR SWITCH
id091200704300
Purpose
• The power outer mirror switch switches the circuit according to the following switch operation.
-
― Up/down, left/right adjustment
― Left/right switching
― Retract/return
Function
Up-down/left-right adjustment function
-
• The up/down, left/right adjustment switch changes the contact point according to the switch operation to switch the circuit to the up/down, left/right adjustment motor.
Left/right selection function
-
• The left/right selection switches are used to switch to the side on which adjustment of the power outer mirror glass is desired.
Retract/return switch (With retractable outer mirror)
-
• The retract/return switch changes the contact point according to the switch operation. As a result, the circuit to the retract/return motor is changed.
Structure/construction
• The power outer mirror switch consists of the following parts.
-
― Up-down/left-right adjustment switch
― Left selection switch
― Right selection switch
― Retract/return switch (With retractable outer mirror)
Operation
-
Note
-
• For the specific operation of the power outer mirror switch, refer to [POWER OUTER MIRROR SYSTEM]. (See
POWER OUTER MIRROR SYSTEM.)

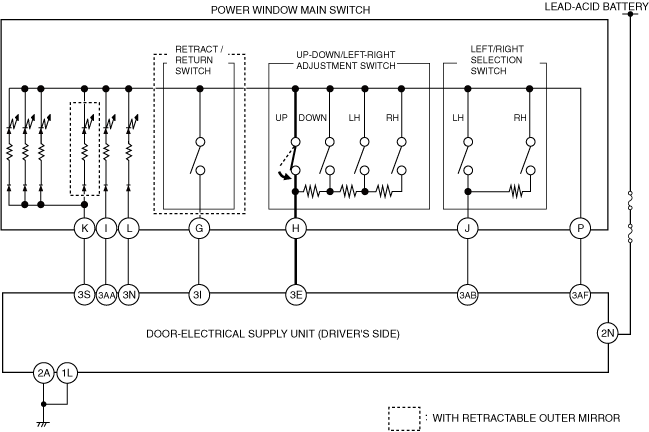

Ex: Switch is pressed in the upward direction
1. By operating the power outer mirror switch, up-down/left-right contact points for the power outer mirror can be switched.

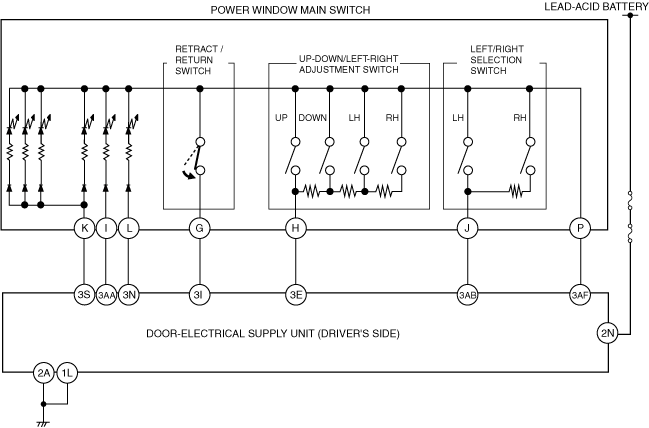

Ex: Switched from return to retract (With retractable outer mirror)
1. By operating the power outer mirror switch, retract/return contact points for the power outer mirror can be switched.
